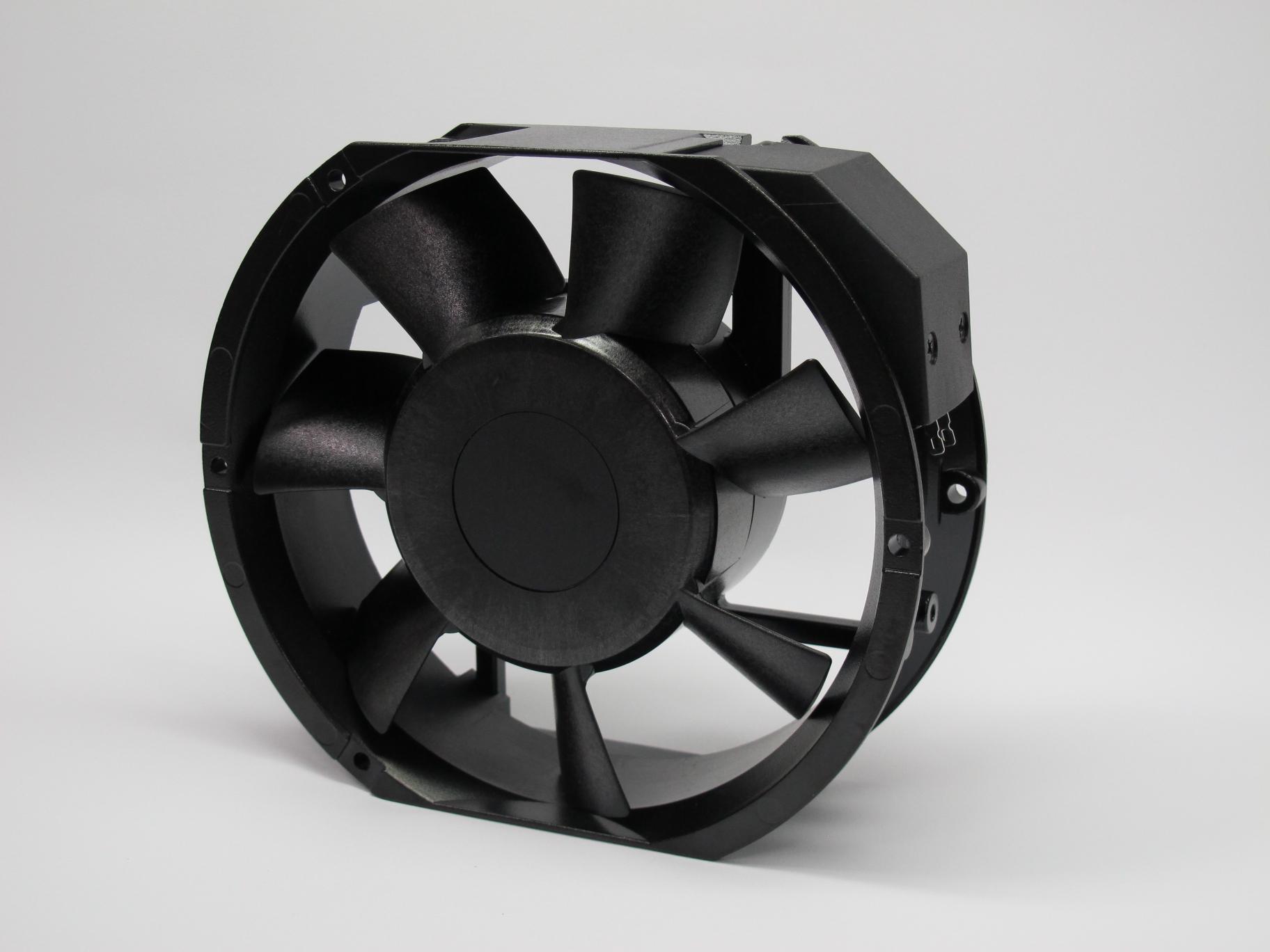

AC FAN SK170APØ172Χ150Χ51mm(6")310~275 CFM
馬  達 Motor
Single phase induction capacitor motor,  thermally protected or impedance protected
外  殼 Housing / Frame
Die-cast aluminum, Painted black (AP) or Plated (AN) 風  葉 Impeller Glass reinforced thermoplastic, UL 94V-0 軸  承 Bearing Type Two-ball bearing 接電方式 Connecting T-Terminal push-on type or W-Lead wire type 耐  壓 Dielectric Strength 1 min. at 1,500VAC, 50/60Hz 溫度範圍 Operating Temp Ambient  -20℃~+70℃ 壽  命 Life Expectancy 60,000 hours at 25℃ 40,000 hours at 65℃
檢  定 Safety Approvals
UL, CUL, TUV, CE, ISO9001
型    號 Model No.
電 壓 Rated VAC
頻 率 Freq. Hz
電流 Rated Input Amp
功  率 Rated Input Watt
轉  速 Rated Speed RPM
最大風量 Max. Air Flow  ㎥/min     CFM
最大風壓 Max. Static Pressure mm-H2O   inch-H2O
噪 音 Noise Level (dB)
SK170AP-11-1
115 (110V~120V)
50/60 0.52/0.52 59/56 2675/3046 7.7/8.7  275/310  15/19.1    0.59/0.75 56/59
SK170AP-22-1
230V (220V~240V)
50/60 0.26/0.26 59/56 2609/2960 7.7/8.7  275/310 15/19.1    0.59/0.75 56/59
