Boring Milling Head
Built-in Motor Spindle Head

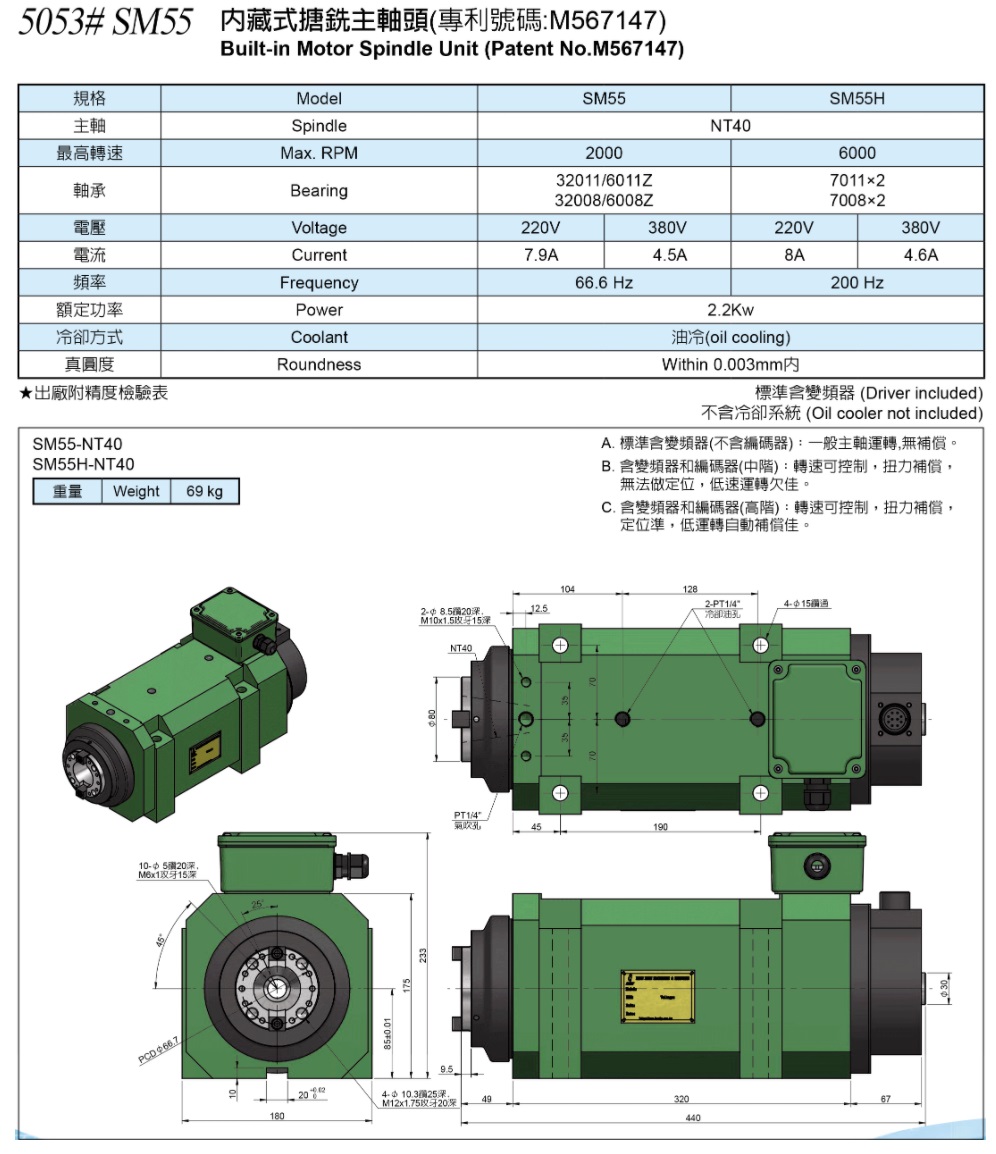

SM55
SM55 Built-in motor spindle is designed for drilling, tapping, boring and milling applications. This product is suitable to install with a servo driven slide for accurate positioning and feeding, saving space requirement and increasing your efficiency and productivity.
Specification
． Servo motor 2.2kW is included
． Spindle taper NT40 is available
． Drive is included
． Encoder is optional
Options (quote on demand)
A. Standard driver (Speed Adjustable/without Torque Compensated)
B. Intermediate driver and encoder (Speed Adjustable/Torque Compensated/Ordinary Orientation at low RPM)
C. Advance driver and encoder (Speed Adjustable/Torque Compensated/Excellent Orientation at low RPM)
