Products

Auto Reel

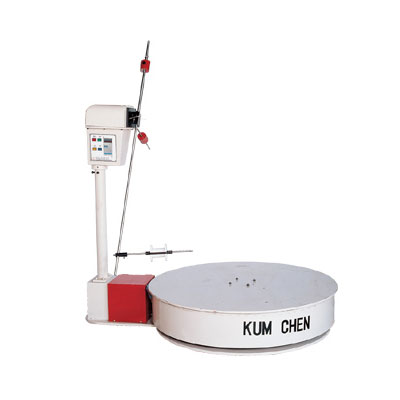

Electronic Flat Uncoiler

Characteristics


1.Feeding with inverter,tracer without joints and speed may be adjusted willfully.


2Coil storage may be overlappedr so as to reduce loading times and save time in replacing materials.


3.Operation is easy and structure is sold.


4.Attacched safety emergency device,it will inspect itself when no materials or over materials.


5.Rotating angle ,operation is smooth without death angle,which can match leveler to use.


6.Coil storage can be adjusted,the height of the control bar also can be adjusted willfully.






Specification

Description\Model

KCU-800

KCU-1000

KCU-1500

Thicness (mm)

Max 1.2

Max 1.2

Max 1.2

Width (mm)

Max 120

Max 120

Max 150

Weight (kg)

Max 800

Max 1000

Max 1500

Height (mm)

Max 500

Max 500

Max 1200

O. Dia. (mm)

Max 800

Max 1000

Max 1200

Motor (HP)

DS 1/2 HP

DS 1/2 HP

DS 1 HP

Rotation (R.P.M.)

0-24RPM

Direction

Left->Right, Right->Left

Power

AC Single Phase 220V

Weight of Machine (kg)

200

260

320
