Features
Very secure clamping systems
Wide range of different models
Greatly reduces die and mold change times
Introduction
Forwell specializes in the production of Automatic Clamp Systems with a wide range of models specially designed to fit your dies and plates. With over 20 years experience in the industry you can rest assured that Forwell will deliver the highest quality clamps for your machining operations.

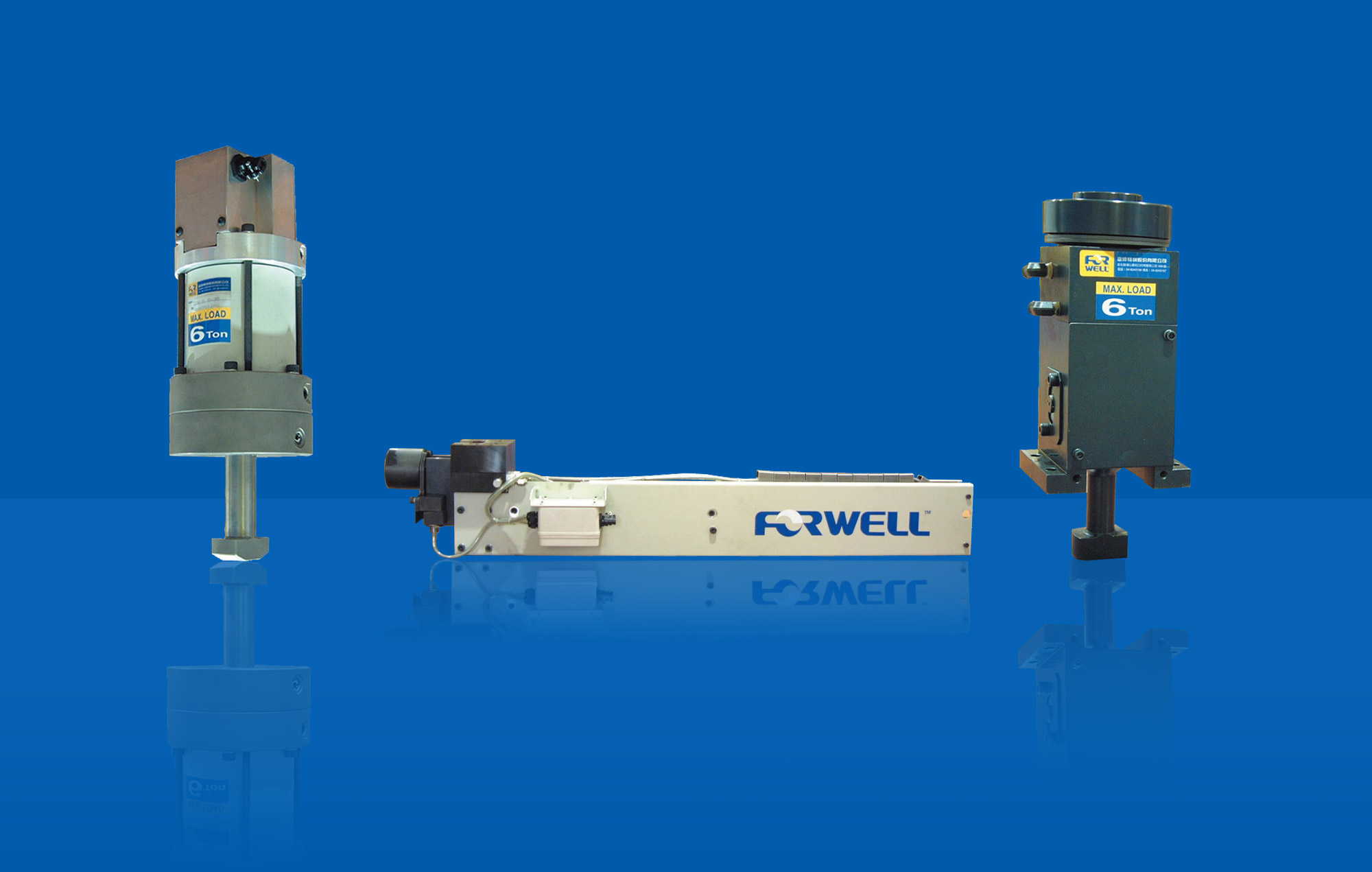

There are a wide range of different models available but the three most popular automatic clamping systems are the TAX Pneumatic Type Clamp System, the TR 90° Rotating Die Clamp and the TS Swing Type Clamp.
System Selection
Forwell specializes in the production of Automatic Clamp Systems with a wide range of models specially designed to fit your dies and plates. With over 20 years experience in the industry you can rest assured that Forwell will deliver the highest quality clamps for your machining operations.
There are a wide range of different models available but the three most popular automatic clamping systems are the TAX Pneumatic Type Clamp System, the TR 90° Rotating Die Clamp and the TS Swing Type Clamp.
The TAX system uses an automatic pneumatic pressure mechanism to individually clamp upper dies. This system is well suited for both smaller and larger hydraulic presses.
| Clamp | F | N | P |
|---|---|---|---|
| TAX-4 | 68 | 68 | 24 |
| TAX-6 | 78 | 73 | 16 |
| TAX-10 | 98 | 79 | 6 |
The TAX system uses an automatic pneumatic pressure mechanism to individually clamp upper dies. This system is well suited for both smaller and larger hydraulic presses.
| Clamp | F | N | P |
|---|---|---|---|
| TAX-4 | 68 | 68 | 24 |
| TAX-6 | 78 | 73 | 16 |
| TAX-10 | 98 | 79 | 6 |
The TR system uses a hydraulic mechanism with a 90° turning movement to lock molds and dies into position. This heavy duty Clamping System is available in three different models with a clamping force up to 16 tons
| Proof Pressure | 27.0MPa(275kgf/cm2) |
| Max Working Pressure | 18.1MPa(185kgf/cm2) |
| Working Pneumatic Range | 0.4~0.7(4~7kgf/cm2) |
| Ambient Temperature Range | -5~60°C |
| Hydraulic Fluid | ISO VG32~VG56 |
| Model | Clamping force(at 185kgf/cm2) | Requited Qrantity(cc.) | A±1 | MIN.B | MIN.C |
|---|---|---|---|---|---|
| TR-6 | 6 | 32.5 | 40 | 75 | 25 |
| TR-10 | 10 | 52.5 | 50 | 95 | 30 |
| TR-16 | 16 | 84.0 | 60 | 110 | 35 |
| Model | D | E | F | G | J | K | M | N | PT | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TR-6 | 112 | 70 | M8*16 Deep | M12*20 Deep | 64 | 30 | 32 | 148 | 1/4 | 79 | 22 |
| TR-10 | 116 | 70 | M14*30 Deep | M14*30 Deep | 84 | 35 | 40 | 158 | 3/8 | 89 | 27 |
| TR-16 | 120 | 76 | M14*35 Deep | M14*35 Deep | 99 | 40 | 50 | 168 | 3/8 | 94 | 32 |
| Model | T | U | V | W | X | kg Maxx |
|---|---|---|---|---|---|---|
| TR-6 | 235 | 15 | 61 | 108 | 44 | 20 |
| TR-10 | 252 | 16 | 74 | 110 | 49 | 25 |
| TR-16 | 267 | 16 | 79 | 115 | 54 | 27 |
