Switching ELM series permanent magnetic lifting plate
Lifting Magnet
ELM-300V
EZ-Lift Material Handing Accessories
- Fast loading for vertical transport.
- One person can load and unload.
- No dangerous straps & slings.
Used for vertical transport of plate stock for fabricating, machining, etc.
Specification

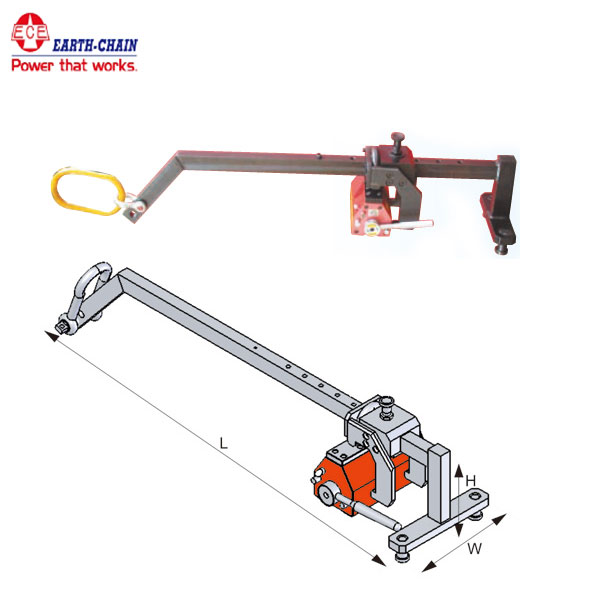

| Model | Size L× W × H | Weight | ||
| mm | inch | kg | lbs | |
| ELM-300V | 953 × 216 × 254 | 37.5 × 8.5 × 10 | 26 | 57 |
| ELM-600V | 1156 × 272 × 254 | 45.5 × 10.7 × 10 | 39 | 86 |
| ELM-1000V | 1207 × 343 × 305 | 47.5 × 13.5 × 12 | 58 | 128 |
| Model | Plate Size ( L× W × H min/max ) | |||||||
| Capacity | L (min. / max.) | W (min. / max.) | H (min. / max.) | |||||
| kg | lbs | mm | inch | mm | inch | mm | inch | |
| ELM-300V | 300 | 660 | 200/1500 | 8/60 | 300/800 | 11.8/31.5 | 6/150 | 0.25/5.9 |
| ELM-600V | 600 | 1320 | 300/1800 | 12/72 | 300/1000 | 11.8/39.4 | 8/250 | 0.31/9.8 |
| ELM-1000V | 1000 | 2200 | 300/2000 | 12.5/79 | 300/1000 | 11.8/39.4 | 10/300 | 0.93/11.8 |
