STANDARD ACCESSORIES

Draw bar

Tool box

Way cover(F&R)

Vertical motorization

Electrical cabinet

Automatiec lubricator

XY ball screw

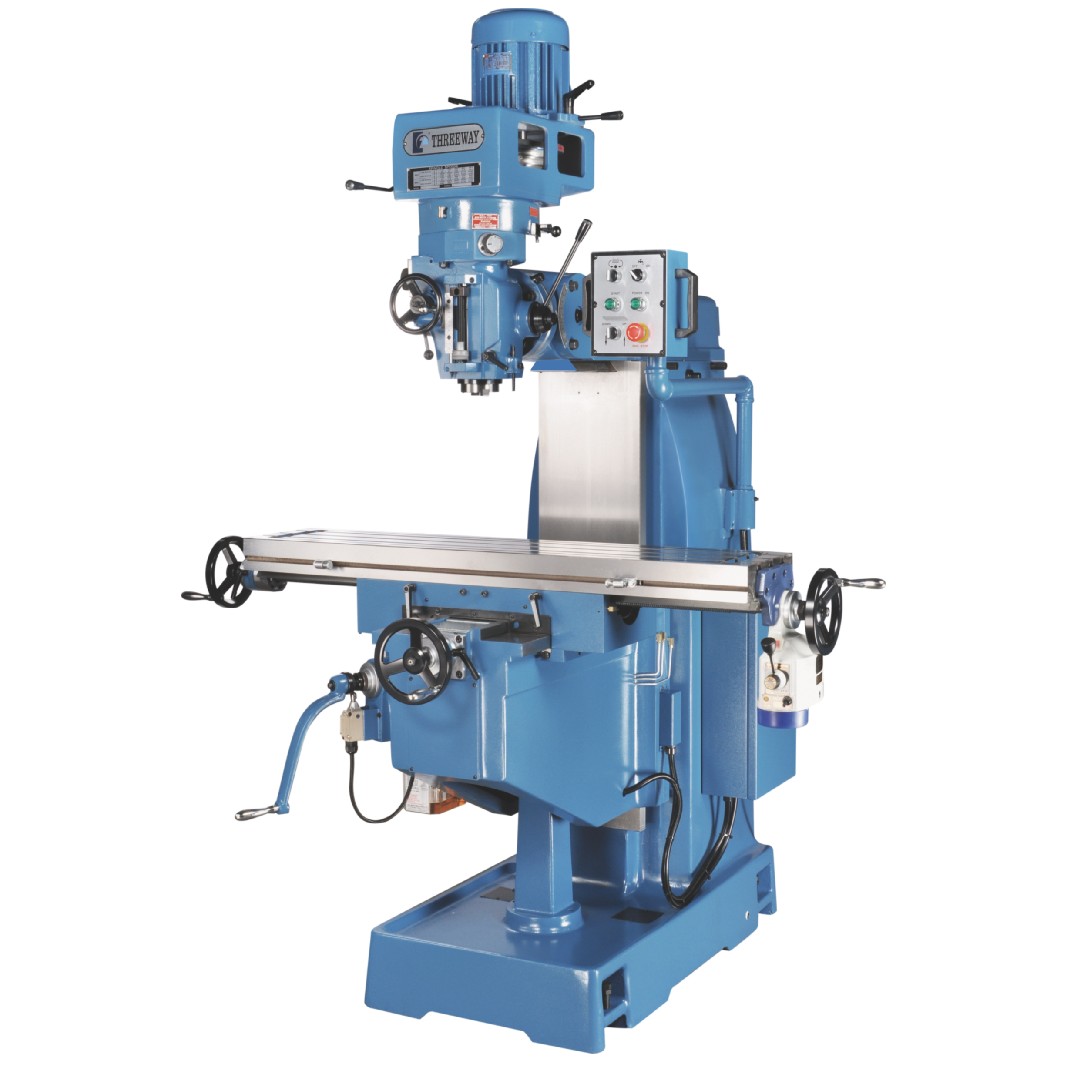

• Powerful 5HP Drive, #1.8 Milling Head. Quill Diameter 105mm. Head Is Rear Locked.


• The Spindle Is Manufactured From Chromolybdenum Alloy Steel, Tempered, Carburization Treated And Precision Ground. Employs Class P4 Angular Contact Ball Bearing For Superior Precision And Rigidity.


• Extra Thick Table Measures 11”X52”. Table Surface And T-Slots Are Precision Ground, Providing Accurate Machining References.


• X,Y,Z-Axis Slideways Are Hardened By High Frequency Heat Treatment, And Precision Ground.


• X,Y-Axis Are Laminated With High Quality Turcite-B, Precision Processed By Nc Machine For Smooth Traverse And Maximum Wear Resistance.


• X,Y-Axis Employ Class C5 Precision Preloaded Ball Screw With Double Nuts For Backlash Free And Superior Positioning Accuracy.


• Equipped With A High Performance Automatic Lubricator. Lubricating Frequency And Oil Flow Can Be Set As Desired. The Lubrication System Is Provided With An Additional Pressure Distributed Check Nozzles, Permitting Uniform Oil Flow Through Nozzles For Smooth Traverse And Extending Machine Life.


• Machine Column And Overarm Are Directly Coupled To Greatly Upgrade Rigidity And Stability.
