Eagle Eye Series YDH88
Mirco Diameter Ball Nose End Mill
YDH88BS2A
The Eagle Eye series is used for machining of materials between HRC 45-55, and "Miniature End Mills" using the same material. Widely used for a variety of purposes, this sophisticated line features a special ultrafine carbide grade for HSC machining.
Specification

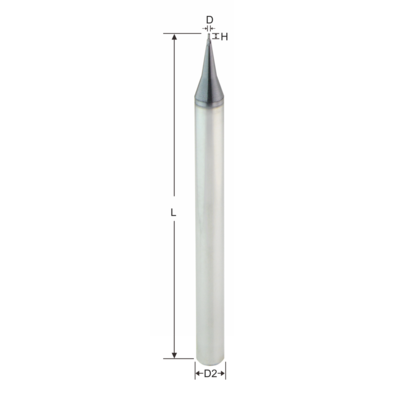

| Type No. | Diameter | Flute Length | Overall Length | Shank Dia |
|---|---|---|---|---|
| 2 Flute | D | H | L | D2 |
| BS2A04050-R0.15 | R0.15 | 0.6 | 50 | 4 |
| BS2A04050-R0.20 | R0.20 | 0.8 | 50 | 4 |
| BS2A04050-R0.25 | R0.25 | 1.0 | 50 | 4 |
| BS2A04050-R0.30 | R0.30 | 1.2 | 50 | 4 |
| BS2A04050-R0.35 | R0.35 | 1.4 | 50 | 4 |
| BS2A04050-R0.40 | R0.40 | 1.6 | 50 | 4 |
| BS2A04050-R0.45 | R0.45 | 1.8 | 50 | 4 |
