Ball Valve & Ball Stud Machines

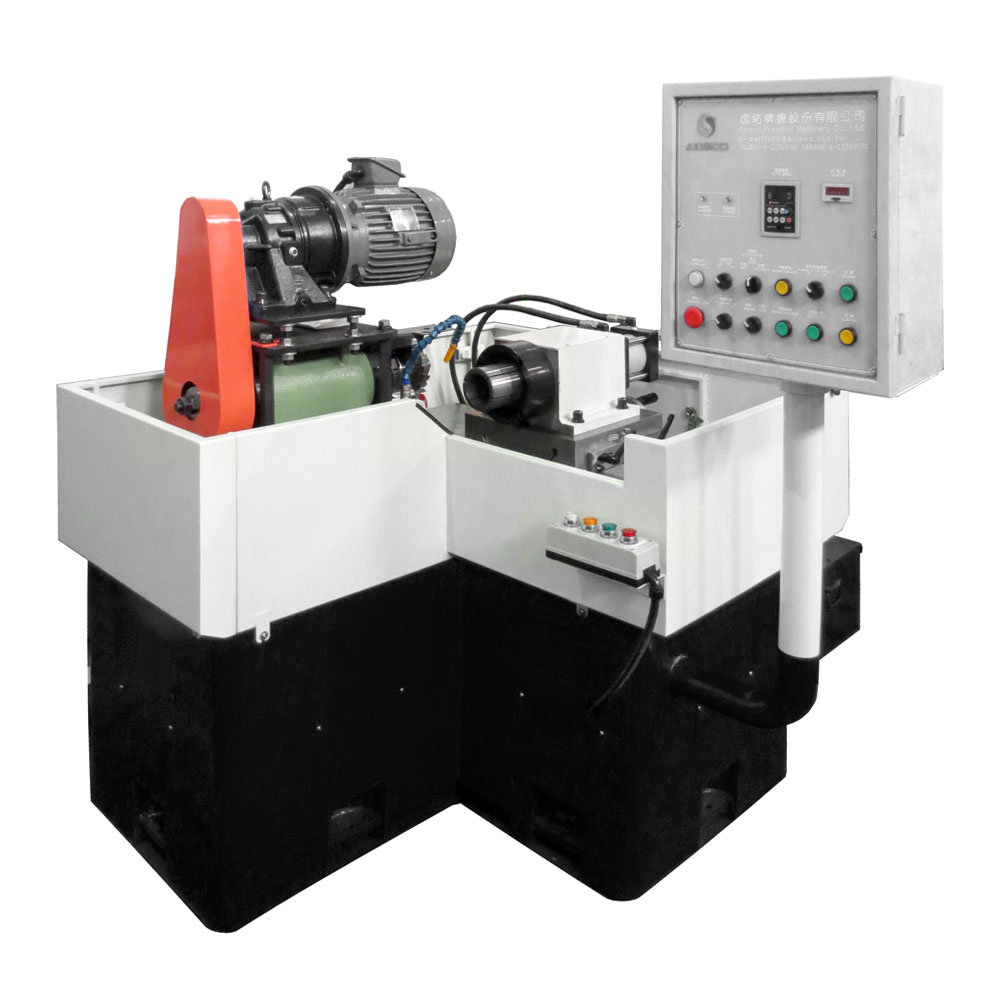

Ball Valve Ball Grooving Machine 2-1／4"~4"
BA-GRV-400
With special structure and chuck design, the ball valve grooving becomes very easy and intuitive.
Special chuck design for easy loading / unloading, and very good clamping performance.
Rigid structure for milling.
Do horizontal grooving with milling cutters.
Specification
| MODEL | BA-GRV-200 | BA-GRV-400 | BA-GRV-800 | |
|---|---|---|---|---|
| Working range | 3/8″~2″ | 2 1/4″~5″ | 5″~8″ | |
| Spindle motor | 5HP*6P | 7 1/2HP*6P | 10HP*6P | |
| Hydraulic motor | 2HP*4P | 2HP*4P | 2HP*4P | |
| Coolant motor | 1/8HP*4P | 1/4HP*4P | 1/4HP*4P | |
| Machine height | mm | 1,650 | 1,700 | 1,750 |
| Dimension | mm | 1,650*1,300 | 1,800*1,400 | 2,000*1,500 |
* The specification is for reference only. All rights are reserved by axisco.
