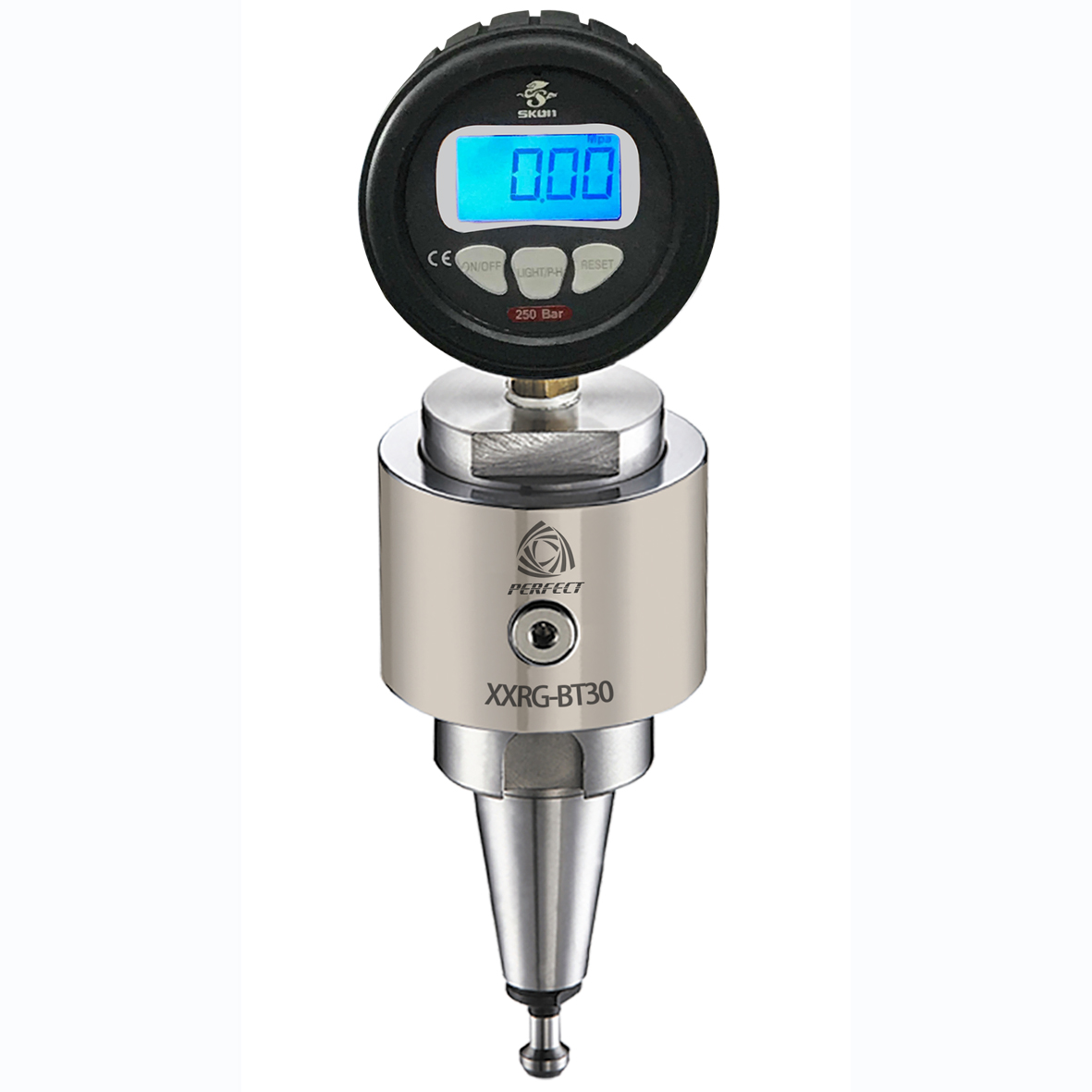

Digital Spindle Force Dynamometer

Model	Measuring range	Package weight kg
BT30-45°	0~70bar                 tolerance                 ±0.5KG	4.2KG
BT30-60°
BT30-90°
JIS6339-30
ISO30	0~100bar                 tolerance                  ±1.0KG
ISO30-R3
DIN30
SK30

Model	Measuring range	Package weight kg
BT40-45°	0~250bar                 tolerance                  ±20.KG	4.3KG
BT40-60°
BT40-90°
CAT40*45°
CAT40*60°
CAT40*90°
ISO40-A
ISO40-B
MAZAK-40
JIS6339-40
DIN40
SK40



Model	Measuring range	Package weight kg
BT50-45°	0~400bar                 tolerance                 ±3.5KG	6.7KG
BT50-60°
BT50-90°
CAT50*45°
CAT50*60°
CAT50*90°
ISO50
MAZAK-50
JIS6339-50
DIN50
SK50

1 bar=1.02kg/cm2

Digital Rally Meter Operating Instructions:

a: Pull force count explicit return to zero setting method

   1. Turn the A rod to a loose turn so that it has no pressure.

   2. Turn on (ON/OFF button) and press and hold (Light/P-H button)

   3. Enter the mode setting, there will be a flashing number, press (REST

    button) Set to “9”, press (Light/P-H) to enter standby time

   Press (REST) to set to “5”, then press (Light/P-H) twice.

   Will be automatically set to zero,

   4. Press (ON/OFF) again to select the unit.

   5. Tighten the A-pull rod again. At this time, the pressure value will

   go up. Please stay at the most appropriate pre-pressure

   value indicating that it should be between 5kg.

PS. To change the settings again,you have to wait for the shutdown

before you can make settings.

b: pull force counting explicit fueling method

    1. First remove the plug from the B

    2. Turn the "A" Pull studs to loose

    3. Push the A rod inward again (to make the oil chamber oil

         level retract)

    4. Fill the R68 hydraulic oil from the B hole and lock the rear plug.

    5."A" Pull studs can be pressurized to about 5KG.



c:Method of pull stud replacement

    1. Use the adjustable wrench to clamp the seat of "D"

    2. Turn the "A" Pull studs ("D" to hold )

    3. Replace the new Pull studs "A" and lock it again.

    4."A" Pull studs can be pressurized to about 5KG.

Screw thread 1/4PT  1 bar=1.02kg/cm2

1. boot display: After loading the battery, press and hold the power / unit key to display the current pressure value \

2. Pressure value to zero: When the pressure value is displayed, the zero button is pressed for three seconds, the pressure is zeroed.

3. Other proposed and set, see below.

Pressure gauge button function description:

A. Button Definition: There are three buttons on the pressure gauge panel

1. Power / Unit: The left button is - power / unit key

2. Backlight: The middle button is - Backlight

3. Zero button: The right button is - zero button

8. Parameter setting mode: At the same time, press and hold the backlight key, enter the parameter setting mode,

For details, see (3) Parameter setting mode.

C. Change the pressure unit: press the power / unit key click, that is, the current pressure unit change.

D. backlight switch: press the backlight key click, that is, turn on or off the backlight.

E. shows the maximum pressure value:

1. Press and hold the backlight key for three seconds, the LCD displays the maximum pressure value, and the "Max" pattern below the LCD flashes.

2. Press and hold the backlight key for 3 seconds, and return to normal working condition.

F. maximum pressure value zero:

In the state of displaying the maximum pressure value, press and hold the zero key for 3 seconds, the LCD will display "...." For 1 second, and the maximum pressure value will be zero.

G. Pressure value zero: Pressing the zero key for 3 seconds while the pressure value is displayed, the current pressure value is zero.

Parameter setting mode

A. The first item: zero mask setting

1. At the same time, press and hold the backlight key, enter the parameter setting mode.

2. Setting Mode The first item is to set the zero mask range, and the screen displays CUt.X.

3. Use the zero key to adjust the X number, X is 1-9.

B. second: shutdown time setting

1. Press the backlight key again, enter the setting mode The third is the shutdown time setting, the screen displays LCd.X.

2. Use the Zero key to adjust the number of X, X is 1-9.

C. Third: Turn off the backlight time setting

1. Press the backlight key again, enter the setting mode The third is to turn off the backlight time setting, the screen displays LEd.X.

2. Use the zero key to adjust the number of X, X is 1-9 D. The setting is completed - Save the setting:

1. Press the backlight key again, then the set value is memorized.

2. Then back to normal working status display
