Tube Insert ／ End Cap

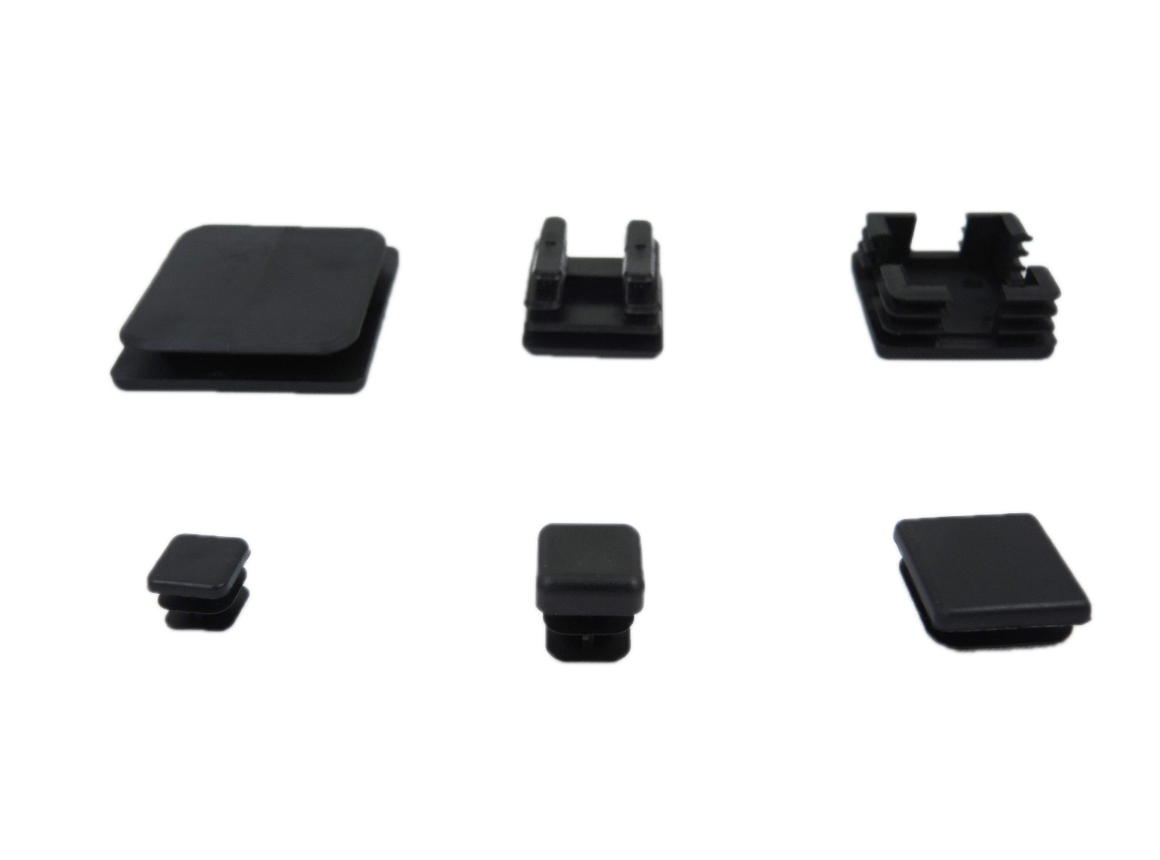

Square Tube Inserts (SQ)
SQ
Square Tube Inserts
-PA6
-Black color
-Made in Taiwan
-MOQ : 200 PCS
-Lead Time : 21 days (depends on the stock)
Comment :
- Article number : SQ
- All the products are conformed in RoHS regulation
- Customize product also accept.Please feel free to
contact with us in any request
Specification
Illustrate :
SQ-20-20
article's number- cap's diameter- cap's diameter
More-Details:
| Article No. | Tube Diameter | Thickness (mm) | Material | ||
| mm | inch | ||||
| SQ1313 | 13 x 13 | 1.0 | PA6 |  |
|
| SQ1414 | 14 x 14 | 1.0 | PA6 |  |
|
| SQ1616-1 | 16 x 16 | 1.0 | PA6 |  |
|
| SQ1818 | 18 x 18 | 1.0 | PA6 | ||
| SQ2020 | 20 x 20 | 1.0 | PA6 |  |
|
| SQ2222 | 22 x 22 | 1.0 | PA6 |  |
|
| SQ2525 | 25.4 x 25.4 | 1"x 1" | 1.0 | PA6 |  |
| SQ2525-4 | 25.4 x 25.4 | 1"x 1" | 2.0 | PA6 |  |
| SQ2525-6 | 25.4 x 25.4 | 1"x 1" | 1.6 | PA6 |  |
| SQ2525-7 | 25.4 x 25.4 | 1"x 1" | 1.0 | PA6 |  |
| SQ2525-8 | 25.4 x 25.4 | 1"x 1" | 2.6 | PA6 |  |
| SQ3030-1 | 30 x 30 | 1.0 | PA6 |  |
|
| SQ3030-3 | 30 x 30 | 2.0 | PA6 | |
|
| SQ3232 | 32 x 32 | 1-1/4" x 1-1/4" | 1.0 | PA6 | |
| SQ3838 | 38 x 38 | 1-1/2" x 1-1/2" | 1.0 | PA6 |  |
| SQ4040-1 | 40 x 40 | 2.3 | PP |  |
|
| SQ4040-2 | 40 x 40 | 1 | PA6 |  |
|
| SQ4040-3 | 40 x 40 | 1.5 | PA6 |  |
|
| SQ4040-4 | 40 x 40 | 2 | PA6 |  |
|
| SQ4545 | 45 x 45 | 1 | PA6 |  |
|
| SQ5050-1 | 50.8 x 50.8 | 2" x 2" | 1 | PE | |
| SQ5050-3 | 50.8 x 50.8 | 2" x 2" | 1 | PA6 | |
| SQ5050-4 | 50.8 x 50.8 | 2" x 2" | 1.6 | PA6 |  |
| SQ5050-5 | 50.8 x 50.8 | 2" x 2" | 2 | PA6 |  |
| SQ6060 | 60 x 60 | 1 | PP | ||
| SQ7575 | 75 x 75 | 1 | PP |  |
|
