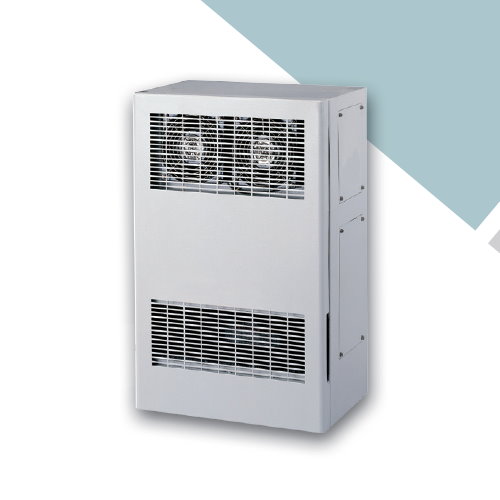

Air Conditioner for Electric Cabinet
Air Conditioner for Electric Cabinet

Application

Electric Cabinet for any kind of machine,Tele-communication Equipment and Electric Control System

Features

Prevent the electric cabinet from breaking down caused by the heat of electronic componments to reduce the maintenance cost and machine idle time.
Control the electric cabinet temperature in fixed range to extend the working life of electronic componments.
Avoid the intrusion of dust, oil mist and moisture in the electric cabinet by closed design.

Specification



Spec / Model Cooling Capacity On-load Current Dimensions
( WxDxH )
BTU/hr Kcal/hr W A mm
EAC-14 1278/1534 322/387 374/449 1.4 300x180x560
EAC-20 1667/2000 420/504 488/586 2.7 380x232x580*1~2
EAC-40 3333/4000 840/1008 976/1171 4.7 400x220x535
EAC-60 5000/6000 1260/1512 1464/1757 5 454x230x640
EAC-80 6667/8000 1680/2016 1952/2342 5 420x280x1027
EAC-120 10236/12283 2579/3095 2997/3596 8.5 468x295x1200
