Specification

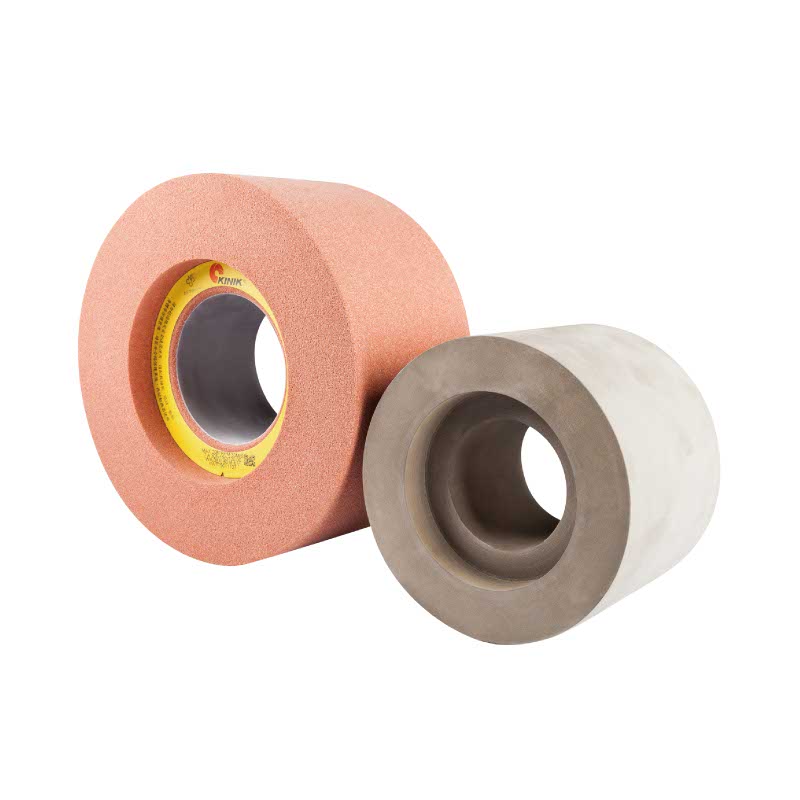

| Grinding Wheel | Unit：mm | ||||||
|---|---|---|---|---|---|---|---|

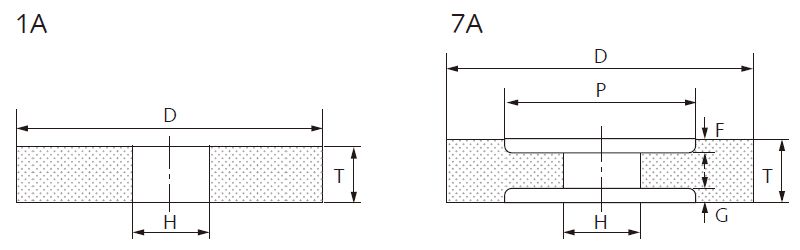

| Shape | D | T | H | P x F x G | Spec. | Part No. | Package |
| 7-1A | 305 | 150 | 120 | 175x25x25 | FA80M8V | YWF75017 | 1 |
| 7A | 305 | 150 | 120 | 175x25x25 | 38A60M8V | YWT75011 | 1 |
| 7A | 305 | 150 | 120 | 175x25x25 | 38A80M8V | YWT75004 | 1 |
| 7A | 455 | 205 | 228.6 | 300x25x25 | FA60K7V | YWF77012 | 1 |
| Regulating Wheel | Unit：mm | ||||||
|---|---|---|---|---|---|---|---|
| Shape | D | T | H | P x F x G | Spec. | Part No. | Package |
| 1A | 205 | 100 | 90 | A120RR | YUA43004 | 1 | |
| 7A | 205 | 150 | 90 | 130x25x25 | A120TR | YUA83001 | 1 |
| 1A | 230 | 205 | 127 | A150OR | YUA54021 | 1 | |
| 7A | 255 | 205 | 111.2 | 175x75x20 | A150TR | YUA84003 | 1 |
| 7A | 255 | 205 | 111.2 | 175x25x75 | A150STR | YUA84057 | 1 |
| 1A | 255 | 205 | 111.2 | A120RR | YUA54001 | 1 | |
| 1A | 255 | 305 | 111.2 | A150OR | YUA54011 | 1 | |
| 7A | 305 | 205 | 127 | 200x64x38 | A150RR | YUA85019 | 1 |
| 1A | 305 | 205 | 127 | A150RR | YUA55004 | 1 | |
| 1A | 305 | 305 | 127 | A150RR | YUA55065 | 1 | |
| 1A | 330 | 305 | 127 | A150OR | YUA55069 | 1 | |
| 1A | 355 | 305 | 152.4 | A150OR | YUA56011 | 1 | |
