Conventional Milling Machine

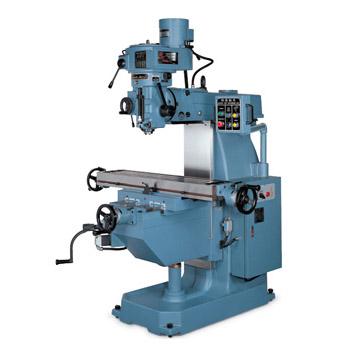

Conventional Milling Machine QB
QB
●The milling head features powerful full function. It affords extremely powerful, rigid performance while in low speed cutting, and excellent stability high speed. ●One piece casting of base, column and ram guideway gives superior rigidity without deformation. ●The loading center of base is of solid constructed with scientific rib reinforced providing excellent stability of loading. ●Quality casings are over FC 30 and FCD 35, which are fully material analyzed prior to casting. Tempering heat treated for maximum wear resistance without deformation.
Specification
Product Information
| MODEL | QJM-QB-VA | QJM-QB-VS |
| SPINDLE | ||
| Spindle taper | NST30 / R8 / NST40 (on request) | |
| Spindle speed | 75-3600RPM 16 Step | 60-3600RPM (4050) variable |
| Head swivel | Right and left 45° | |
| Quill travel | 140MM (5.51”) | |
| Ram travel | 450MM (17.71”) | |
| Distance from spindle to table | NST30 & NST40 0-500MM (0-19.68”)R8 0-485MM (0-19.09”) | |
| Distance from spindle to column | 165-615MM (6.49”-24.21”) | |
| Quill feed per revolution of spindle | 0.035/0.07/0.14MM(0.0014”X0.0028”X0.0056”) (Per revolution) | |
| TABLE | ||
| Table surface | 1200 x 260 mm(47.24”X10.23”) | |
| Table longitudinal travel |
650MM (25.59”) |
|
| Table cross travel | 350MM (13.77”) | |
| Table vertical travel | 360MM (14.17”) | |
| T-Slot (Width x Number x Spacing) | 16mm X 3 X 64mm | |
| Vertical power travel speed | 1150MM / MIN (45.27”/min) | |
| MOTOR HORSEPOWER | ||
| Spindle | 2.2kw (3HP) | 2.2KW (3.7KW AC inverter) |
| Knee (Z axis) | 0.75KW (1HP) | |
| Lubrication pump | 3W | |
| Magentic pump | 13W | |
| Machine dimension ( L x W x H ) | 1750 x 1610 x 2180MM(69” x 63.38” x 85.82”) | 1750 x 1610 x2310MM(66.92” x 66.92”) x 82.67”) |
| Packing dimensions ( L x W x H ) | 1700 x 1700 x 2100MM(66.92” x 66.92” x 82.67”) | 1700 x 1750 x 2100MM(66.92” x 66.92” x 82.67”) |
| Net weight | 1620KGS(3564 Lbs) | 1680KGS(3696 Lbs) |
| Gross weight | 2000KGS(4400 Lbs) | 2080KGS(4576 Lbs) |
