GRINDING MACHINES

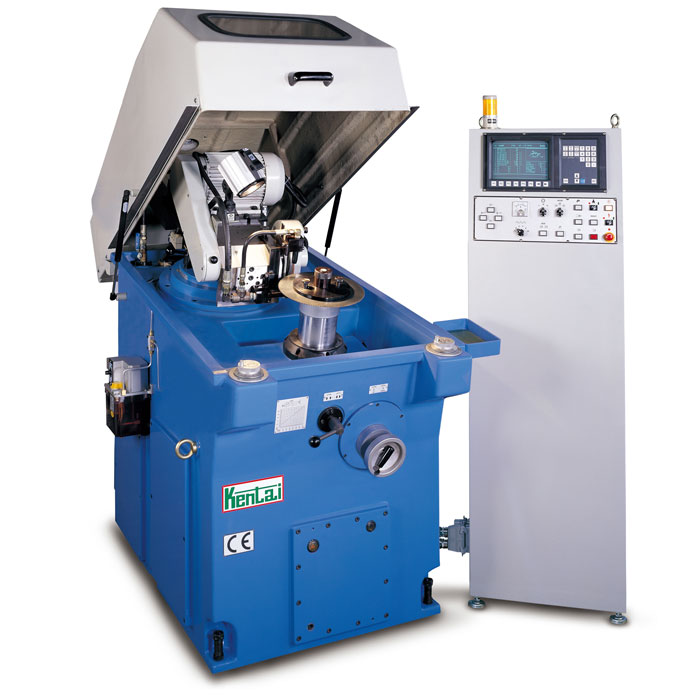

CNC 2 Axis Saw Grinding Machine
KNC-500CBN
|
|
| CNC 2 Axis Saw Grinding Machine |
Specification
| Model. | KNC - 500CBN |
| Saw blade diameter | 70 ~ 500 mm |
| Pitch range | 24 mm ( max. ) |
| Wheel diameter | 200 mm |
| Wheel inner diameter | 32 mm |
| Wheel motor | 3.75 kw |
| Pneumatic pressure requirement | - |
| Total electronic power | 9 kw |
| Gross weight | 1,500 kgs |
| Dimension (W x H x D) | 146 x 200 x 208 cm |
| * The specifications subject to change without prior notice. | |
