FEATURES :
◆ Hardened and ground square slideways on Y & Z axes and coated with Turcite-B to reduce the friction coefficient of the contact face, it guarantee the accuracy and wear resistance.
◆ Long wide Work Table: 1370x300mm, Thickness of Table: 84mm avoid deformed.The wider saddle: 1110mm can fully support Table for stable movement in all directions, it ensures minimum overhang and deformation and guarantee extremely cutting accuracy & efficiency.

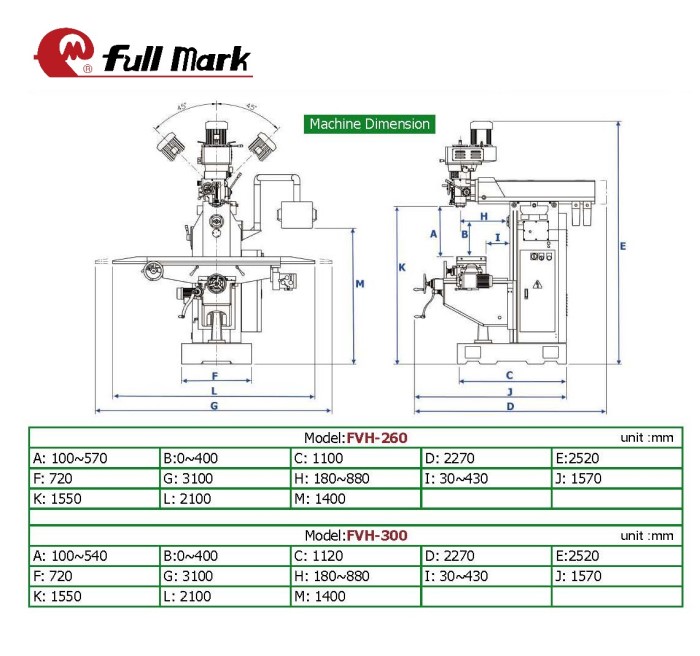

◆ X.Y.Z TRAVEL: 1000 x 400 x 470mm for FVH-260 ; 1000 x 400 x 440mm for FVH-300
◆ The spindle shaft is made of molybdenum Steel (SCM21) for smooth operation and assures great rigidity & shock resistance.
◆ Precision Ball screws are employed on X.Y. axes to supply smooth movement during operation and achieve best positioned control and low backlash.
◆ Horizontal milling equipment comes with "arbor bracket" to enhance the cutting rigidity.

Standard Accessories :
◆ Electric control box, swing arm & panel
◆ Halogen work lamp
◆ 1370x300mm Table

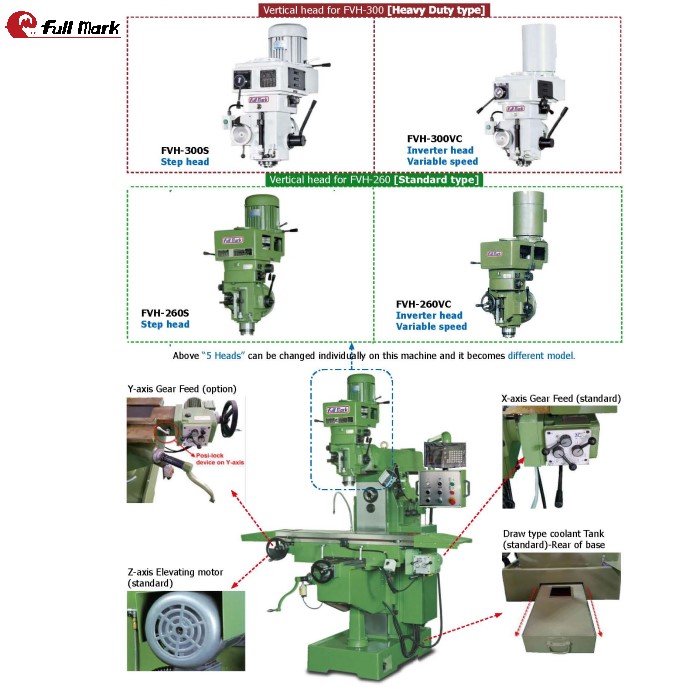

◆ Gear Table Power Feed (X-axe)
◆ Vertical drawbar
◆ Spindle: ISO40
◆ Gear elevating reduce motor (Z-axe)
◆ Auto lubrication system
◆ X.Y.Ball screw
◆ Horizontal Milling arbor Ø25.4mm & Support bracket
◆ Coolant system
