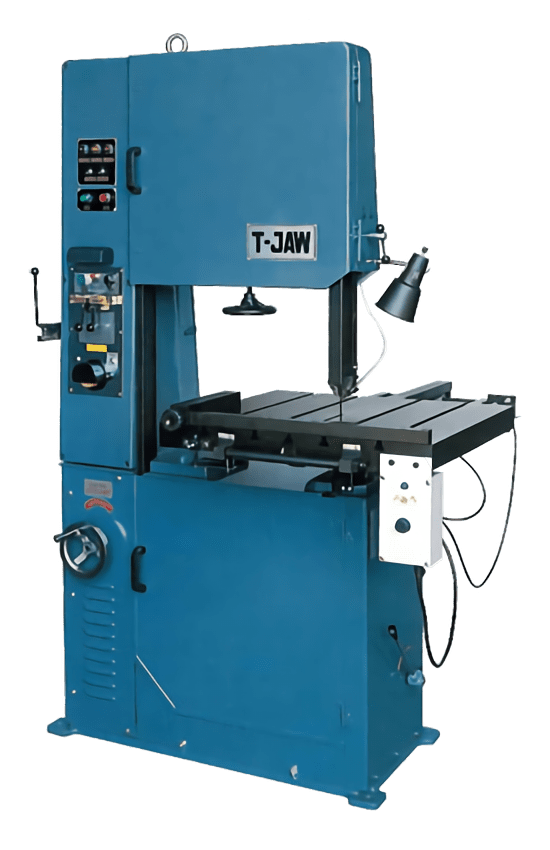

STANDARD MACHINE FEATURES:
Infinitely variable speed.
The band tension is cushioned.
Blade welder and grinder are front mounted for quick, accurate blade repair and installation.
Interchangeable rubber bonded saw wheels.
Brush for cleaning lower drive wheel.
Manintenance-free airpump provides air to remove chips from the point of cut.
The upper wheel could be adjusted for band tensioning.
Hand wheel controlled speed.
Adjustable saw blade guides.
Machine light is fitted.
Change speeds while the machine is in operation, without stopping, without pulley changes.
Cast iron frame to minimize machine vibration.
The machine is with a device for automatic linear cutting.
Work table may take speedy reverse movement.
Moton of work table is controlled by stepless speed controller.
Work table is with auto stoppers.
| SPECIFICATION | mm (in.) |
| Height Under Guide | 274mm 10-3/4" |
| Throat, Band to Column | 600mm 24" |
| Blade Speed | 25-456m/min 82-1496ft/min |
| Blade Width | 3-25mm 1/8"-1" |
| Blade Length | 4376mm 172-1/4" |
| Size of Table | 740×680mm 29-1/8"×26-3/4" |
| Tilt, Main Table | 5° R, 5° L |
| Motor | 2HP |
| N0. of "T" Slots in Table | 4 |
| Table Stroke | 320mm 12-1/2" |
| Table Feed Operation | Electric Powered |
| Machine Size | 1300×1170×2060mm 51-1/8"×46"×81-1/8" |
| Net Weight | 700kgs 1540lbs |
| Ship Weight | 800kgs 1760lbs |
| Packing Size | 1390×880×2260mm 54-3/4"×34-5/8"×89" |
| STANDARD FEATURES/ACCESSORIES: | |
| Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence, 4 "T" slots in table ,infinitely variable speed, rubber bonded saw wheels , magnetic switches , electric powered table, 110 volt control & lighting. | |
| OPTIONAL ACCESSORIES: | |
| Clrcle Cuttmg Attachment Miter Gauge |
|
