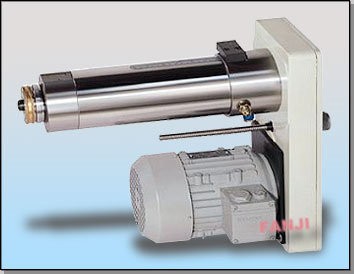

Standard Spindle Unit FSU-35-60
This unit is made for rotary transfer machine. Rotary transfer machine is made into 12 or 16 stations. This unit is used in one or more than one station application. This unit can be used for drilling, turning, and boring. Stroke is 60 mm.

Tapping unit FTU-35/60
Tapping unit: is made for tapping purpose on rotary transfer machine. This unit is installed with external lead screw that makes changing pitch and lead screw in few minutes.

Universal Unit FSU-20/80
This unit is used in rotary transfer for mounting the other heads to perform, milling, cross drilling, and recess.

Inverting Unit FIVU-30/60
This unit is for inverting the part for 180 degree to allow the machine works on
the other side of part.

Cut off Unit FCU-25/100
This unit is to perform cut off of material. When the bar is moving into fixture, then cut-off unit will cut the part off, and allow the part travel to next station for another operation.

Recess Head FRUH-100/10
This head will be mounted on Universal unit FSU-20/80 to perform the recess of part.

Cross Drill Head FCDH-20/80
This head is mounted on Universal unit for doing cross drill, 2 holes or 3 holes.

12 Station Indexing Table
This index table is to hold fixture collets, allows the part fixed inside the collet, and travels from station.  Index time is 0.5 second.
