Rotary Cylinders
Rotary Cylinders Thru-Hole
TK

Short Type Thruhole Hydraulic
TK
Short type Thru-Hole Rotary Hydraulic Cylinder with Safety Device
Super short form, light weight large Through-Hole, just as 2/3 of typical model length.
Built-in safety check valves and pressure relief valves.
Can screw it from the rear end of the cylinder when mounting.
Patent numbers :
Taiwan : PAT.NO.M491534
China : PAT.NO.ZL201420584274.5

Specification

Model Eff. piston area cm2
Extend		 Eff. piston area cm2
Retract		 Piston stroke (mm) Max. speed
min-1(r.p.m.)		 Max. pressure
MPa
(kgf/cm2)		 I
kg‧m2
Moment of inertia		 Weight
kg		 Total oil leakage
lit./min.
TK-A528 73.0 69.7 12 8000 4.5 (45) 0.012 6.2 3.0
TK-A533 73.0 69.7 12 8000 4.5 (45) 0.012 6.0 3.0
TK-C643 99.1 88.0 15 7000 4.5 (45) 0.018 7.5 3.0
TK-A646 105.0 93.9 15 7000 4.5 (45) 0.018 7.3 3.0
TK-B646 105.0 93.9 15 7000 4.5 (45) 0.018 8.6 3.0
TK-C646 99.1 88.0 15 7000 4.5 (45) 0.018 7.5 3.0
TK-B846 135.3 125.0 20 6300 4.5 (45) 0.032 12.4 3.9
TK-A853 135.3 125.0 20 6300 4.5 (45) 0.032 11.8 3.9
TK-B853 135.3 125.0 20 6300 4.5 (45) 0.032 11.6 3.9
TK-1068 165.9 149.9 25 5500 4.5 (45) 0.065 17.8 4.2
TK-A1075 170.0 155.0 25 5500 4.5 (45) 0.065 18.8 4.2
TK-A1078 170.1 155.3 25 5500 4.5 (45) 0.065 17.4 4.2



Model Eff. piston area cm2
Extend		 Eff. piston area cm2
Retract		 Piston stroke (mm) Max. speed
min-1(r.p.m.)		 Max. pressure
MPa
(kgf/cm2)		 I
kg‧m2
Moment of inertia		 Weight
kg		 Total oil leakage
lit./min.
TK-A1287 234 217.5 30 3800 4.0 (40) 0.092 24.8 4.5
TK-A1291 234 217.5 30 3800 4.0 (40) 0.092 24.8 4.5
TK-A1511 336.4 315.2 30 3000 3.5 (35) 0.38 57.9 7
TK-A1512 336.4 315.2 30 3000 3.5 (35) 0.38 53.8 7
TK-2114 373.2 336.1 35 2500 3.0 (30) 0.54 58.2 8
TK-2416 418.4 375.4 35 2000 3.0 (30) 1.12 78 9
TK-2416L 418.4 375.4 51 2000 3.0 (30) 1.31 79.2 9
TK-2820 526.2 472.6 51 1600 3.0 (30) 2.4 134 10

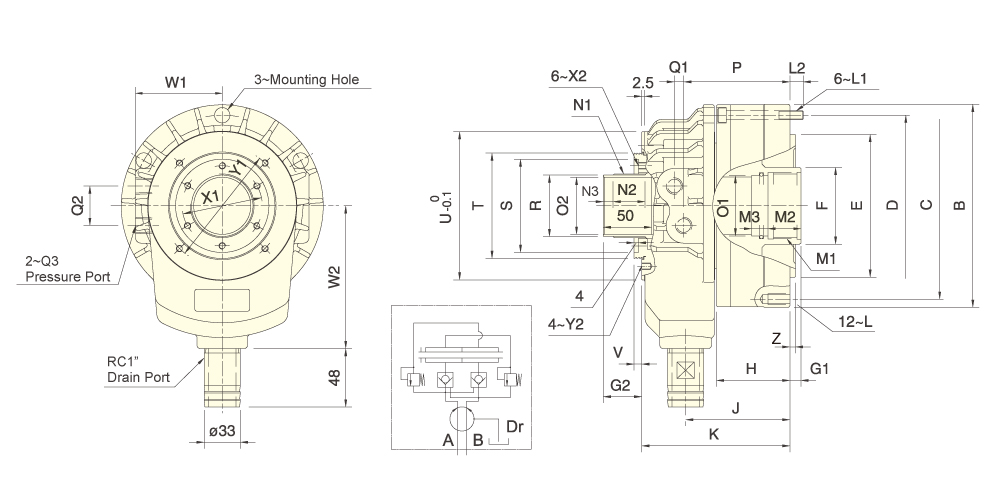

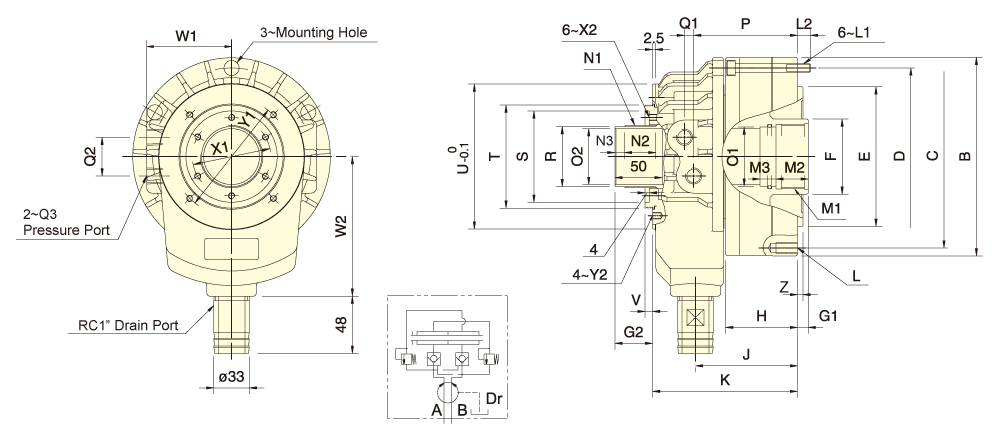

Model A
I.D.		 B C D E
h7		 F G1max. G1min G2max. G2min H J K L L1 L2 M1 M2 M3
TK-A528 105 141 125 125 110 45 12 0 38 26 49 77.5 123 6~M8x20 M8x55 14 M38x1.5 25 13
TK-A533 105 141 125 125 110 45 12 0 38 26 49 77.5 123 6~M10x20 M8x55 14 M38x1.5 25 13
TK-C643 128 156 140 140 120 65 15 0 44 29 56 85 125 12~M10x20 M8x60 12 M50x2 25 13
TK-A646 128 162 147 147 130 65 15 0 44 29 56 85 125 12~M10x20 M8x60 12 M55x2 25 13
TK-B646 128 162 130 147 100 65 15 0 44 29 66 95 135 12~M10x20 M8x70 12 M55x2 30 15
TK-C646 125 156 140 140 120 65 15 0 44 29 56 85 125 12~M10x20 M8x60 12 M55x2 25 13
TK-B846 145 185 170 165 130 70 20 0 48 28 66 95 135 12~M10x20 M8x70 12 M55x2 30 15
TK-A853 145 185 170 165 140 70 20 0 48 28 66 95 135 12~M10x20 M8x70 12 M60x2 30 15
TK-B853 145 185 170 165 130 70 20 0 48 28 66 95 135 12~M10x20 M8x70 12 M60x2 30 15
TK-1068 170 212 190 190 160 98 25 0 50 25 73 107 157 12~M10x20 M10x80 17 M75x2 35 15
TK-A1075 170 212 190 190 160 95 25 0 50 25 74 108 158 12~M10x20 M10x80 16 M85x2 35 15
TK-A1078 170 212 190 190 160 95 25 0 50 25 74 108 158 12~M10x20 M10x80 16 M87x2 35 15
TK-A1287 170 212 190 190 160 98 25 0 50 25 73 107 157 12~M10x20 M10x80 17 M87x2 35 15
TK-A1291 200 245 215 225 180 110 30 0 59 29 86 126 184 12~M12X24 M10x90 14.5 M100x2 35 15
TK-A1511 250 300 275 275 230 140 30 0 58 28 102 156 226 12~M16X36 M12x110 21 M120x2 45 15
TK-A1512 250 300 275 275 230 140 30 0 58 28 102 156 226 12~M16X36 M12x110 21 M130x2 45 15
TK-2114 265 320 295 295 240 165 35 0 60 25 115 173.5 247.5 12~M16X36 M12x120 17.5 M155x2 45 20
TK-2416 290 340 300 　 260 190 35 0 60 25 129 185.5 275 M16x32 　 　 M180x3 45 20
TK-2416L 290 340 300 　 260 190 51 0 76 25 145 201.5 291 M16x32 　 　 M180x3 45 20
TK-2820 340 395 360 　 320 235 51 0 76 25 152 212.5 316 M20x40 　 　 M220x3 45 20



Model N1 N2 N3 O1
H8		 O2
H8		 P Q1 Q2 Q3 R
g7		 S
H7		 T U V W1 W2 X1 X2 Y1 Y2 Z
TK-A528 M39x1.5 25 8 35 28 79 8.5 30 RC1/4 37 62 70 98 6 62 110 49 M6x6 83 M5x6 5
TK-A533 M39x1.5 25 8 35 33 79 8.5 30 RC1/4 37 62 70 98 6 62 110 49 M6x6 83 M5x6 5
TK-C643 M52x1.5 29 9 45 43 87 8.5 36 RC3/8 50 76 85 116 6 74 120 64 M6x6 98 M5x6 5
TK-A646 M52x1.5 29 9 50 46 87 8.5 36 RC3/8 50 76 85 116 6 74 120 64 M6x6 98 M5x6 5
TK-B646 M52x1.5 29 9 50 46 97 8.5 36 RC3/8 50 76 85 116 6 74 120 64 M6x6 98 M5x6 5
TK-C646 M52x1.5 29 9 50 46 87 8.5 36 RC3/8 50 76 85 116 6 74 120 64 M6x6 98 M5x6 5
TK-B846 M58x1.5 30 8 50 46 97 8.5 36 RC3/8 56 85 96 128 7 79 130 73 M6x7 110 M6x6 5
TK-A853 M58x1.5 30 8 55 53 97 8.5 36 RC3/8 56 85 96 128 7 79 130 73 M6x7 110 M6x6 5
TK-B853 M58x1.5 30 8 55 53 97 8.5 36 RC3/8 56 85 96 128 7 79 130 73 M6x7 110 M6x6 5
TK-1068 M84x2 33 9 70 68 109 12 40 RC1/2 81 108 121 164 7 98 160 98 M6x8 155 M6x8 5
TK-A1075 M84x2 33 9 80 75 110 12 40 RC1/2 81 108 121 164 7 98 160 98 M6x8 155 M6x8 5
TK-A1078 M84x2 33 9 82 78 110 12 40 RC1/2 81 108 121 164 7 98 160 98 M6x8 155 M6x8 5
TK-A1287 M99x2 38 9 90 87 127.5 15 45 RC1/2 96 120 138 180 7 110 185 108 M6x10 165 M6x10 5
TK-A1291 M99x2 38 9 95 91 127.5 15 45 RC1/2 96 120 138 180 7 110 185 108 M6x10 165 M6x10 5
TK-A1511 M129x2 38 9 115 110 153.75 17 50 RC1/2 126 150 170 227 7 134 210 138 M6x10 210 M6x9 6
TK-A1512 M129x2 38 9 125 120 153.75 17 50 RC1/2 126 150 170 227 7 134 210 138 M6x10 210 M6x9 6
TK-2114 M149x2 38 9 145 140 170 17 50 RC1/2 146 170 190 250 7 145 210 160 M6x10 230 M6x10 6
TK-2416 M174x2 38 　 170 166 186.5 20 50 RC1/2 171 202 220 292 7 167 250 188 M6x11 260 M6x12 5
TK-2416L M174x2 52 　 170 166 202.5 20 50 RC1/2 171 202 220 292 7 167 250 188 M6x11 260 M6x12 6
TK-2820 M218x2 52 　 210 205 216 21 50 RC1/2 215 262 285 360 7 202.5 300 240 M6x12 320 M6x12 6
