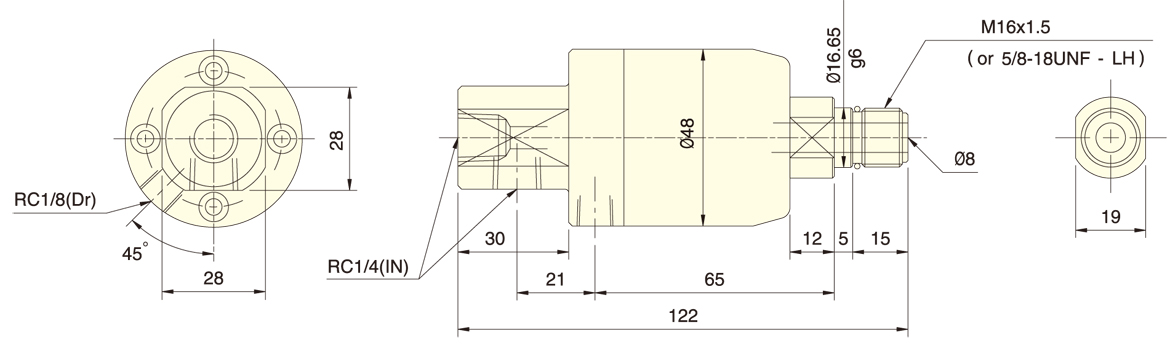

RJ-80
Coolant Joint
RJ-80
Coolant Rotating Joint
Coolant joint for high speed, high pressure and medium delivery.
Usable for oil and water-soluble coolant.
Seal bushing inside is made of cemented carbide and ceramics, which provide higher wear-resistance.
The joint should not run without liquid through coolant port.
Specification
Model | Max. pressure MPa (kgf/cm2) |
Delivery amount (at 50 kgf/cm2) |
V Max. speed min-1(r.p.m.) |
Weight (kg) |
---|---|---|---|---|
RJ-80 | 6.0(60) | 28 l/min | 8000 | 0.5 |
