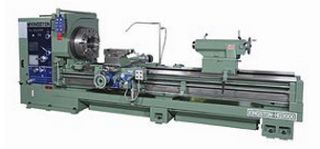

| SPECIFICATION |
HG 2000 |
HG 3000 |
HG 4000 |
HG 5000 |
HG 6000 |
HG 7000 |
| GENERAL |
| Swing over bed |
870 mm / 1020 mm |
| Swing over cross slide |
638 mm / 788 mm |
| Height from floor to work center |
1235 mm / 1310 mm |
| Max distance between center |
2032 mm |
3048 mm |
4064 mm |
5080 mm |
6096 mm |
7036 mm |
| HEADSTOCK |
| Hole thru spindle |
371 mm |
| Spindle nose |
A2-20 |
| Number of speed changes |
16 |
| Range of spindle speeds |
3-300 rpm |
| GEAR BOX |
| Number of feed changes |
40 kinds |
| Range of feeds per revolution longitudina |
in inch 0.0024 - 0.0337 |
| in metric 0.064 - 0.891 |
| Cross |
1/2 against longitudinal feed |
| THREADS |
| Leadscrew diameter and threads per inch |
48 mm, 2 TPI (P= 12 mm) |
| Threading range whitworth |
1 to 28 TPI - 50 kinds |
| Mertic |
1 to 28 mm - 41 kinds |
| Module |
0.5~7 M 20 kinds |
| D.P. |
4~56 D.P 40 kinds |
| CARRIAGE AND COMPOUND |
| Compound rest top slide travel |
240 mm |
| Cross slide travel |
540 mm |
| TAILSTOCK |
| Quill diameter |
130 mm |
| Spindle travel |
300 mm |
| Center |
MT No. 6 |
| BED |
| Width of bed |
560 mm |
| MOTOR |
| Main drive motor |
20 HP 6 pole |
| FLOOR SPACE |
| Floor space required Length x Width (mm) |
4900 x 2100 |
5920 x 2100 |
6952 x 2100 |
7922 x 2100 |
9042 x 2100 |
10000 x 2100 |
| WEIGHT KG |
7750 |
8450 |
9150 |
9850 |
10550 |
11250 |
