www.nonstone.com.twProducts
Construction
14 gauge or 16 gauge steel carbon IP55
12 gauge galvanized mounting panel
High quality automatic seamless foam-in-place gasket
Seams continuously welded
All continuous welded seams are finished smooth
Door opening 120°
Quarter-turn lock
Three-point lock on larger enclosures
Heavy-duty hinge
Grounding studs on body and door
Finish
RAL 7032 power coating, RAL 7035 and other color available
Mounting plate in galvanized finish
Standards

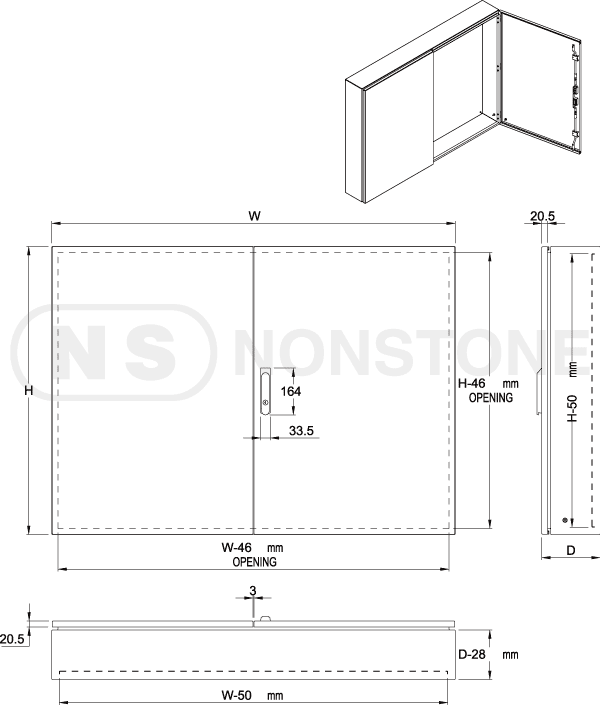

NSDD Series, double-door
IP55, IEC 60529
RoHS Compliant
CE
Custom Enclosures
Nonstone offers high quality custom enclosures and modification services for your unique requirements. Custom orders are very competitive priced and can save your time and money.
For information, please contact your NonStone representative.
Other finish color and textures
Cutouts and special holes in body and doors.
Custom doors
Custom body
Special or custom accessories
| No |
Catalog Number |
H(mm) |
W(mm) |
D(mm) |
CAD | |
| 1 |
NSDD608025 |
600 |
800 |
250 |
||
| 2 |
NSDD608030 |
600 |
800 |
300 |
||
| 3 |
NSDD8010020 |
800 |
1000 |
200 |
||
| 4 |
NSDD8010025 |
800 |
1000 |
250 |
||
| 5 |
NSDD8010030 |
800 |
1000 |
300 |
||
| 6 |
NSDD10010025 |
1000 |
1000 |
250 |
||
| 7 |
NSDD10010030 |
1000 |
1000 |
300 |
||
| 8 |
NSDD12010025 |
1200 |
1000 |
250 |
||
| 9 |
NSDD12010030 |
1200 |
1000 |
300 |
||
| 10 |
NSDD14012040 |
1400 |
1200 |
400 |
||
| 11 |
NSDD14012050 |
1400 |
1200 |
500 |
