Computer Control Complex Machine
Computer Control Complex Machine

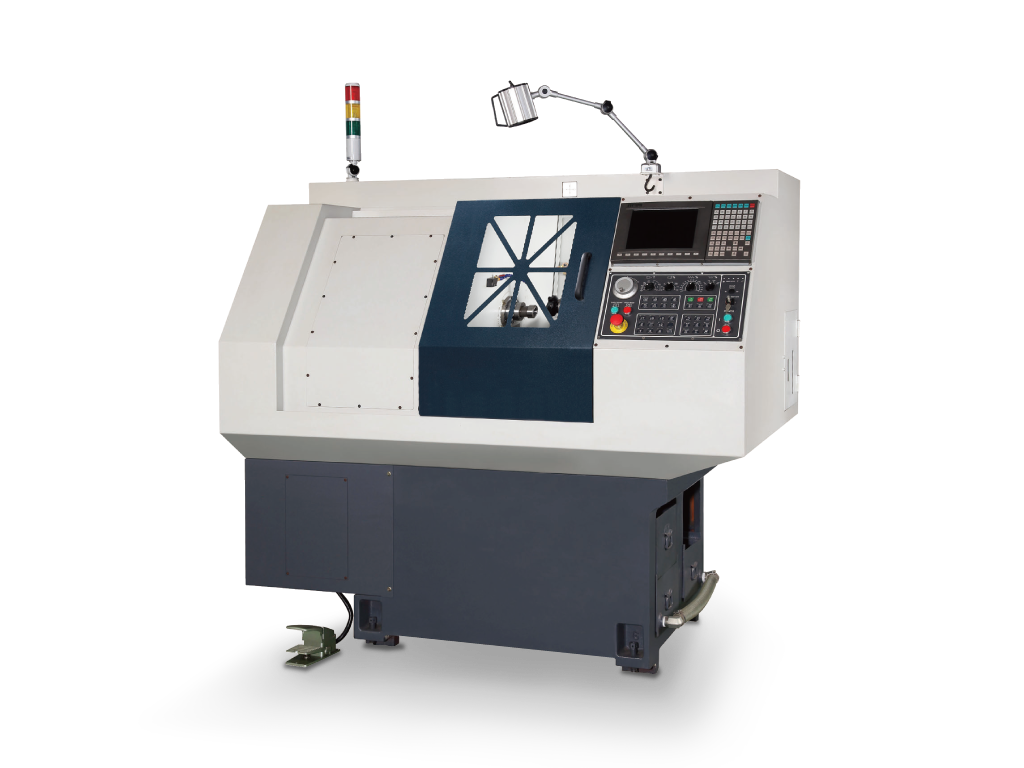

KT-150CTM/CTMR/CTF/CTFR/CTP/CTPR
Larger CNC complex machine, it has the same function as KT-100CNC for bigger workpiece process. Max. clamp outer diameter is 42 it also can work with 6" three-jaw clamp.
Specification
Front Feeding Series Specifications
| KT-150CTM | KT-150CTF | KT-150CTP | ||
|---|---|---|---|---|
| Feeding Type： | front feeding | front feeding | front feeding | |
| Machining Capacity： | Ø40mm | Ø40mm | Ø40mm | |
| Max. Machining Diameter： | 25 - 65mm | 25 - 65mm | 25 - 65mm | |
| Max. Machining Length： | 0.001mm | 0.001mm | 0.001mm | |
| Minimum Input Unit： | 92mm | 92mm | 92mm | |
| Swing Slide Diameter： | ||||
| Cutting Tool | Apply Cutting Tool： | Ø16mm/Ø20mm | Ø16mm/Ø20mm | Ø16mm/Ø20mm |
| Max. Bore Tool： | Ø20mm | Ø20mm | Ø20mm | |
| Spindle | Spindle Nose： | A2-5 | A2-5 | A2-5 |
| Hydraulic Chuck： | 4" | 4" | 4" | |
| Spindle Motor： | 4.5KW | 4.5KW | 4.5KW | |
| Spindle Speed： | 3000RPM | 3000RPM | 3000RPM | |
| Spindle Bore Diameter： | 45mm | 45mm | 45mm | |
| Collet Chuck： | TARUB 32/42 | TARUB 32/42 | TARUB 32/42 | |
| Axis Travel | X-Axis Stroke： | 250mm | 250mm | 250mm |
| Z-Axis Stroke： | 280mm | 280mm | 280mm | |
| X,Z Axis Rapid Speed： | 15m/min | 15m/min | 15m/min | |
| Others | Machine Size(LxWxH)： | 230x150x180 | 230x150x180 | 230x150x180 |
| Machine Weight： | 1500kg | 1500kg | 1500kg | |
| Request Power： | AC/3PH/220V/10KW | AC/3PH/220V/10KW | AC/3PH/220V/10KW | |
| Controller： | SYNTEC 21TA/TB | SYNTEC 21TA/TB | SYNTEC 21TA/TB | |
Rear Feeding Series Specifications
| KT-150CTMR | KT-150CTFR | KT-150CTPR | ||
|---|---|---|---|---|
| Feeding Type： | back feeding | back feeding | back feeding | |
| Machining Capacity： | Ø36mm | Ø36mm | Ø36mm | |
| Max. Machining Diameter： | 65 - 350mm | 65 - 350mm | 65 - 350mm | |
| Max. Machining Length： | 0.001mm | 0.001mm | 0.001mm | |
| Minimum Input Unit： | 92mm | 92mm | 92mm | |
| Swing Slide Diameter： | ||||
| Cutting Tool | Apply Cutting Tool： | Ø16mm/Ø20mm | Ø16mm/Ø20mm | Ø16mm/Ø20mm |
| Max. Bore Tool： | Ø20mm | Ø20mm | Ø20mm | |
| Spindle | Spindle Nose： | A2-3 | A2-3 | A2-3 |
| Hydraulic Chuck： | 4" | 4" | 4" | |
| Spindle Motor： | 4.5KW | 4.5KW | 4.5KW | |
| Spindle Speed： | 3000RPM | 3000RPM | 3000RPM | |
| Spindle Bore Diameter： | 38mm | 38mm | 38mm | |
| Collet Chuck： | TARUB 32/42 | TARUB 32/42 | TARUB 32/42 | |
| Axis Travel | X-Axis Stroke： | 250mm | 250mm | 250mm |
| Z-Axis Stroke： | 280mm | 280mm | 280mm | |
| X,Z Axis Rapid Speed： | 15m/min | 15m/min | 15m/min | |
| Others | Machine Size(LxWxH)： | 350x150x180 | 350x150x180 | 350x150x180 |
| Machine Weight： | 2200kg | 2200kg | 2200kg | |
| Request Power： | AC/3PH/220V/10KW | AC/3PH/220V/10KW | AC/3PH/220V/10KW | |
| Controller： | SYNTEC 21TA/TB | SYNTEC 21TA/TB | SYNTEC 21TA/TB | |
