Hydraulic Coupling Gear Indexer (EXT series)

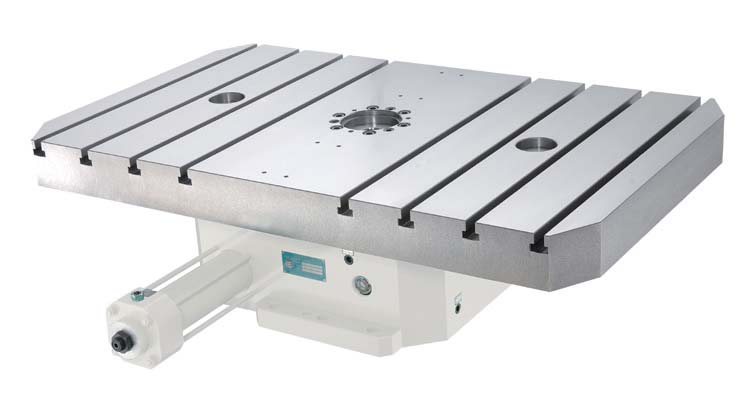

Hydraulic Swing Table EXT-470P
EXT-470P

◆"Three pieces of hirth coupling gear" is built inside for positioning and indexing, keeping high accuracy even after long-term using. The index accuracy is within ±4 arc sec. and repetitive accuracy within ±1 arc sec.
◆With three pieces of hirth coupling gear built inside, there is no floating action during degree indexing, and the sealed structure can keep dust and cutting fluid out from the body even if much cutting fluid is used. High rigidity and gripping force increase the efficiency greatly during heavy duty cutting.
◆Our Indexer is driven by hydraulic unit, and the clamp/unclamp sensor which executes unclamping, rotating, clamping and returning ensures stable and safe operation. It’s suitable for special purpose machine indexing and automatic changer.

Specification

Specifications
