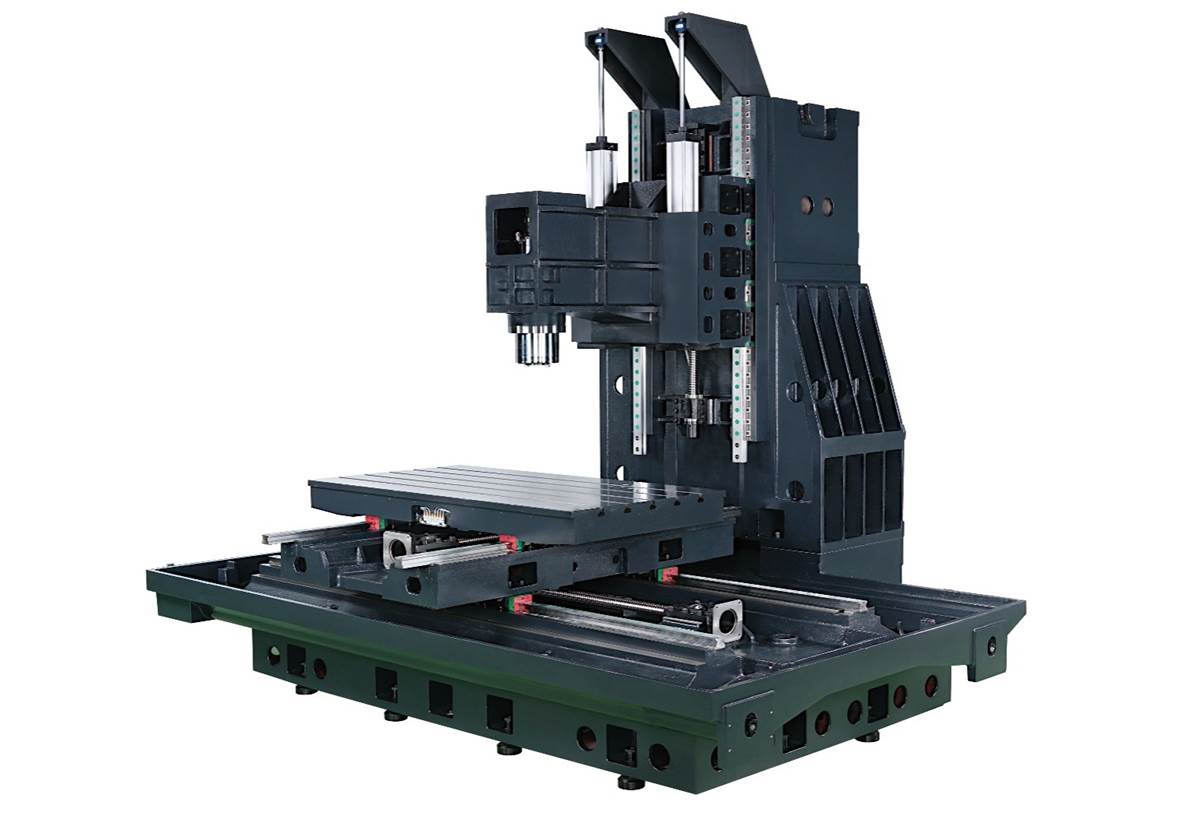

Featuring high rigidity and high precision, EM-1650 CNC vertical machining centers was designed to enhance structural rigidity and accuracy, so as to build a machine with maximum dependability in operational performance and cutting capabilities
The SY EM-1650 CNC vertical machining center are designed to improve stability,rigidity and accuracy, so as to build a machine with maximum dependability in operational performance and cutting capabilities.
Features
● Machine base is a heavily ribbed box-type Meehanite casting, providing maximum rigidity and machining stability.
● Extended base ensures fully support
● Over-sized column structure
● Large sized roller type linear ways
● Over-sized ball screw
● Meehanite Cast Iron, deformation free
Specification
|
MODEL |
|
EM-1650 |
EM-1350 |
||
| SLIDEWAY TYPE | |||||
| Slideway Type | Roller type linear motion guides | ||||
| TABLE | |||||
| Table Sizes | mm | 1700 x 930 | 1400 x 765 | ||
| T-Slots (No. x/dist. x W) | mm | 5 x 150 x 22 | 6 x 125 x 18 (22) | ||
| Max. Table Load | kg | 2500 | 1300 | ||
| SPINDLE | |||||
| Max. Spindle Speed (std.) | rpm | 4000 | 8000 | 4000 | 8000 |
| Spindle Speed Change | Two-step | Variable | Two-step | Variable | |
| Spindle Nose Taper | BT-50 | BT-40 | |||
| I.D of Spindle Bearing | 90 | ||||
| Spindle Cooling | Independent cooling | ||||
| Spindle Head Transmission | Gear | Direct-drive | Gear | Direct-drive | |
| FEED | |||||
| 3 axes Rapid Traverse Rates | M/min | 18/ 18/ 18 | |||
| 3 axes Linear Ways | mm | 3 axes x 55 x 6 blocks | X,Z x 55 x 6 blocks, Y x 55 x 4 blocks | ||
| 3 axes Transmission | Direct-drive | ||||
| Cutting Feed rate | mm/min | 12000 | |||
| Manual Jog Feed Rates | M/min | 4 (20 Step) | |||
| Travel | |||||
| X-axis Travel | mm | 1650 | 1350 | ||
| Y-axis Travel | mm | 860 | 700 | ||
| Z-axis Travel | mm | 800 | 700 | ||
| Distance from Spindle Nose to Table | mm | 150 | 100 | ||
| Distance from Spindle Center to Linear Way on Column | mm | 960 | 790 | ||
| ATC (Auto Tool Changer) | |||||
| Tool Shank Type | MAS BT/ DIN/ CAT | ||||
| Pull Stud Type | MAS BT/ DIN/ CAT | ||||
| Tool Loading Capacity (Std.) | pcs | 24 | |||
| Max. Tool Diameter | mm | 125 | |||
| Max. Tool Weight | kg | 15 / 25 | 15 / 20 | ||
| Max. Tool Length | mm | 400 | 300 | ||
| Max. Tool Dia. (Without Adjacent Tool) | mm | 150 | |||
| Tool Change Time (Tool to Tool) | sec | 2.8 | |||
| Tool Change Time ( Chip to chip) | sec | 3.9 | |||
| Tool Selection | Bi-directional shortest route | ||||
| 3 Axes Motors (Fanuc) | |||||
| Spindle Power (Cont./30min) (Std.) | kw | 15 / 18.5 | 11 / 15 | ||
| 3 axes Motors (X/Y/Z) | kw | 4 / 4 / 7 | 4 / 3 / 4 | ||
| Cutting Fluid Pump Motor (50HZ) | kw | 0.75 | |||
| Cutting Fluid Pump Motor (60HZ) | kw | 0.75 | |||
| Chip Flushing Pump (Coolant gun) | kw | 0.75 | |||
| Power Source | |||||
| Power Source Required | KVA | 40 | 30 | ||
| Air Souce | Mpa. l/ min | 0.6 | |||
| Coolant Tank Capacity | L | 554 | 428 | ||
| Controller | Fanuc / Mitsubishi / Siemens / Heidenhain | ||||
| Machine Dimensions | |||||
| Machine Weight | kg | 16850 | 13950 | ||
| Accuracy(Accuracy tested in a well conditioned room) | |||||
| Positioning Accuracy | mm | 0.009 | |||
| Repeatability | mm | 0.006 | |||
