Specification
|
項目 |
機械規格 (SPEC.) |
項目 |
機械規格 (SPEC.) |
|
機械型號 |

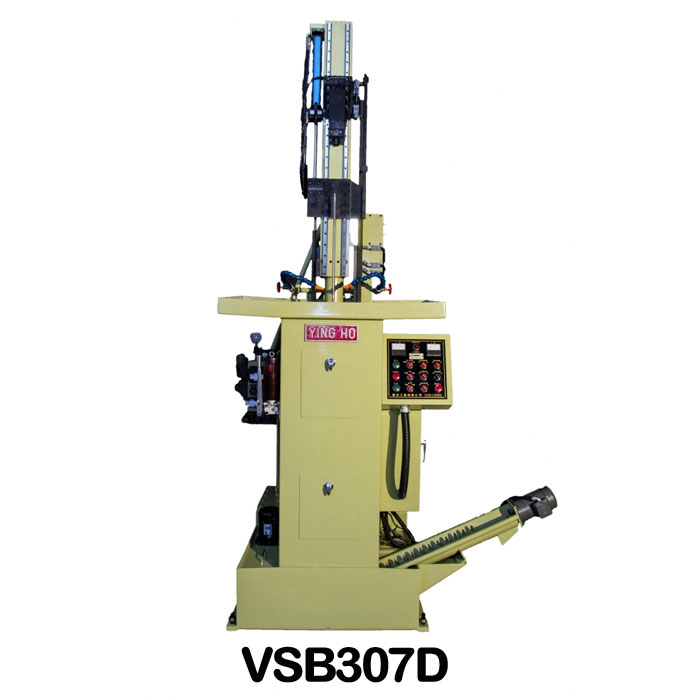

VSB-307D |
提刀行程(mm)外加 |
500 |
|
(Model no.) |
(Lifting stroke) (add) |
||
|
最大拉力(kg) |
3000 |
主泵浦用馬達(HP) |
7.5 |
|
(Max. Broach power) |
(Main pump motor)(HP) |
||
|
有效行程(mm) |
700 |
切削水用馬達(HP) |
1/4 |
|
(usable stroke) |
(Cooling pump motor)(HP) |
||
|
垂直度(mm) |
0.02/300 |
作業台高度(mm) |
1500 |
|
(Perpendicularity) |
|
(Height of operation table) |
|
|
工作半徑(mm) |
150 |
機台全高度(mm) |
3100 |
|
(working radius) |
|
(Height overall) |
|
|
拉削速度(M/min) |
1~7 |
基座面積 長x寬(mm) |
1360x1020 |
|
(Broaching speed) |
|
(Area of base) |
|
|
退刀速度(M/min) |
2~20 |
機台重量(kg) |
2200 |
|
(back speed) |
|
(Weight of broach) |
