NS-P Pre-bulb slotted body flat head
‧ The NS Pre-bulb slotted body forms 4 large bearing surface legs on the backside of the parent material providing the best all around pull out strength.
‧ The pre-bulbed body allows the NS-P to be installed with the spin-spin tools in single, variable or multiple thickness materials without adjustment for parent material thickness. This makes the NS-P ideal for materials such as rotational molded plastic and hand laid up fiberglass that will vary in thickness.
‧ The NS-P is available in steel & Monel. (Stainless steel could be developed)
‧ 10-32 to 5/16-18 and M5 to M8 thread sizes in two grip sizes. (M10 is available now.)

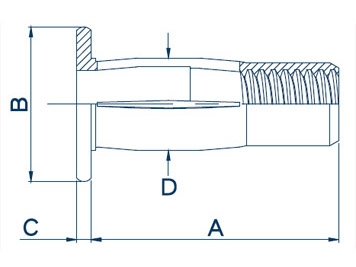

‧ See page 27 for dimensional details and part numbers.
