Fog Lights

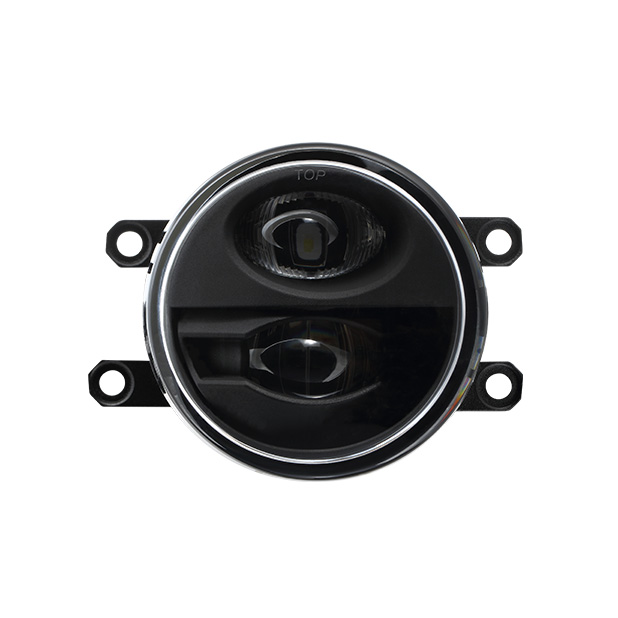

90mm Fog light+DRL
G92501B
Features:
- 2in1 Multi-function: fog lamp with DRL
- High visibility
- Fit as a replacement for most modern fog lamps
- Plug & Play: easy to replace your existing fog lamps
- Attractive design
- ECE certificate/ SAE compliant
Specification
- Input Voltage Range：DC 12V/24V
- Fog Light Current Draw：0.52A@12V/ 0.25A@24V
- DRL Current Draw：0.23A@12V/ 0.12A@24V
- Fog Light Power Consumption：7W
- DRL Power Consumption：3.1W
- Color Temperature：6000K
- Protection Class：IP68
- Operating Temperature：-40°C ~ +80°C
- Storage Temperature：-40°C ~ +85°C
- Outer Lens Material：Polycarbonate
- Housing Material：Die-cast Aluminum
- Connector：3 Way Tyco/AMP Superseal

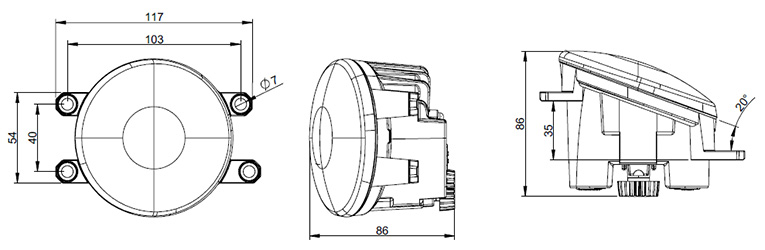

- Dimensions：H 90 x W 117 x D 86 mm
- Certificate：ECE R19/R87
- Product option：Black
