DYP-D-Rubber Compression Molding Machine

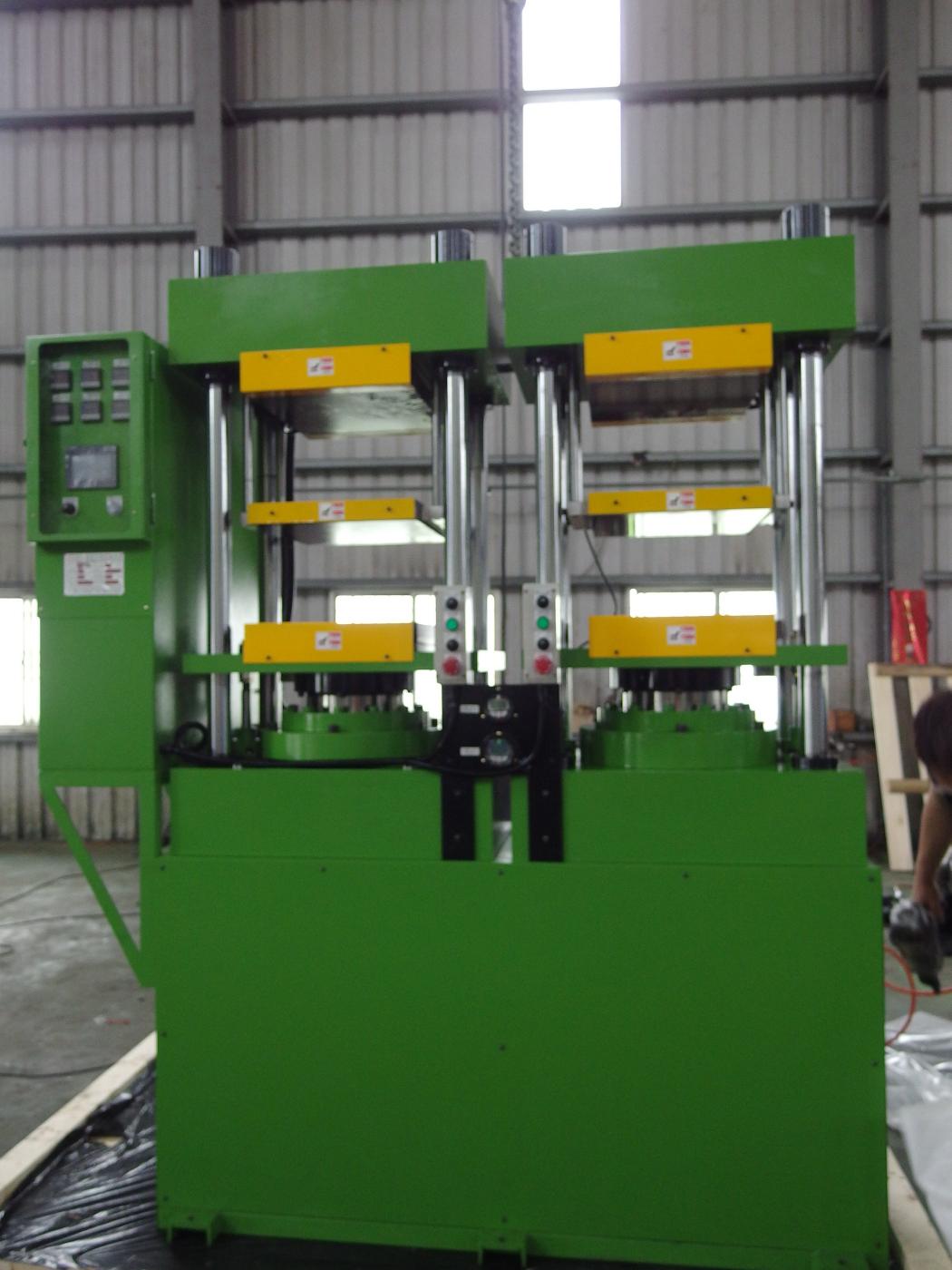

DYP-D-*-N2-Vacuum Type Rubber Compression Molding Machine

DYP-D-Rubber Compression Molding Machine

DYP-D-*-N2-Vacuum Type Rubber Compression Molding Machine

DYP-D-*-N2

Application:for rubber，bakelike,melamine dishes,urea product,brake lining and other hardening compression forming etc.

Specification

● 用途 Application

適用於橡膠、電木、美耐皿、尿素製品、剎車來令及各種硬化壓縮成型....等。

Rubber Compression Molding Machine is designed for Rubber product compression forming use.

規格Type	DYP-*-150	DYP*-200	DYP-*-250	DYP-*-350
出力 Clamping force (ton)	150	200	250	350
主軸直徑 Piston diameter (mm)	300	355	400	460
熱盤尺寸Heating platen size (mm)	420x440	520x540	570x600	680x680
模板尺寸 Mold platen size (mm)	450x450	540x560	600x650	720x750
主軸行程Main piston stroke (mm)	250×2	250×2	250×2	250×2
電熱容量Heater capacity (kw)	4.5x2	6.0x2	7.2x2	9.6x2
馬達馬力 Motor horsepower (hp)	3HP	5HP	5HP	7.5HP
S:單機single unit D:雙機Double unit

.
       壓縮成型機特殊離型機械可依客戶需求安裝。

       Rubber Compression
       Molding Machine with special ejection device for mold leaving, which can
       be installed as the require of customers

● 機型說明Order
Model Guide
