minimal dead space without dirt pockets
easily disassembled, e.g. for cleaning
insensative to contamination
medium is barely heated by the solenoid
emergency manual override with
position indicator as standard
materials and constructional design are
particularly suited for food applications

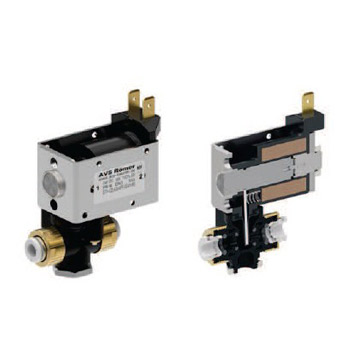

High quality valve series with coaxial flow or 90° flow, in 2/2- and 3/2- way version, especially for use in the food industries and medical technology.
The solenoid operates against spring force a pivot mounted lever to which a membrane is attached. The interior of the valve is spatially and thermally separated from the solenoid system.
A particularly effective ratio of electric power to flow rate and allowable operating pressure is obtained by the optimisation of lever and spring in conjunction with the low friction transmission.
