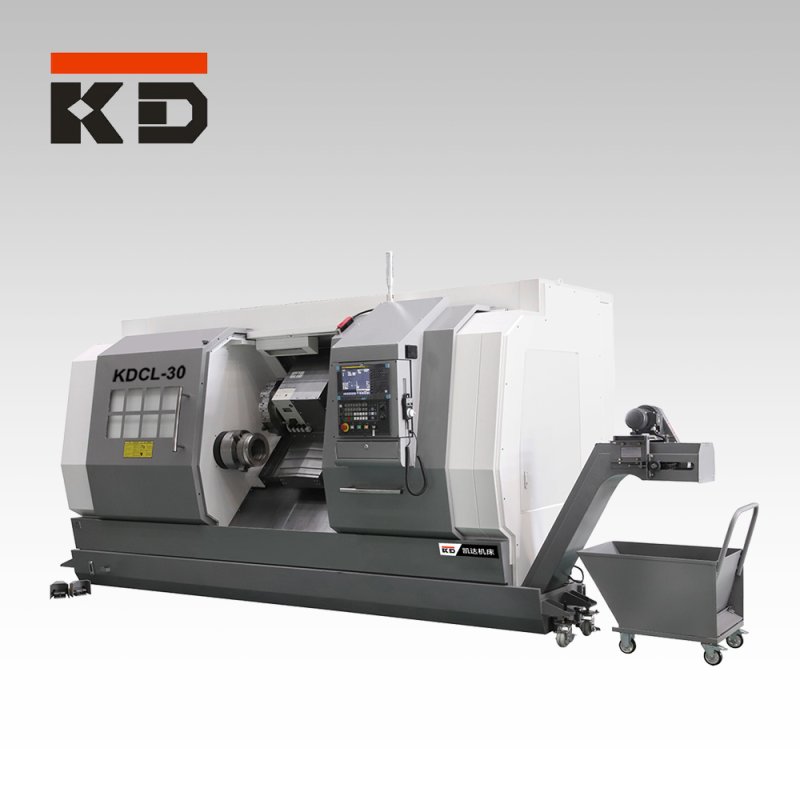

X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy.
| Item | Unit | KDCL-30 | KDCL-30H |
| Processing | |||
| Max. swing Dia. over bed | mm | Ø650 | Ø650 |
| Max.cutting Dia. for disc parts | mm | Ø500 | Ø400 |
| Max.cuting Dia. for axle parts | mm | Ø370 | Ø370 |
| Max. cutting length for axle parts | mm | 1000 | 1000 |
| Spindle | |||
| Spindle bore | mm | Ø90 | Ø90 |
| Spindle nose | A₂-8 | A₂-8 | |
| Spindle speed | rpm | 2500 | 2500 |
| Travel | |||
| Max. travel of axis X | mm | 270 | 270 |
| Max. travel of axis Z | mm | 1060 | 1060 |
| Speed | |||
| Rapid feed for axis X | m/min | 16 | 16 |
| Rapid feed for axis Z | m/min | 20 | 20 |
| Turret | |||
| Tool post stations | pcs | 12 | 12 |
| Live motor power | kW | 3.7/5.5 | |
| Max. speed of live tool | rpm | 4000 | |
| Outside Dia. Cutting tool shank | mm | 25×25 | 25×25 |
| Inner Dia. cutting tool shank | mm | Ø40 | Ø40 |
| Tailstock | |||
| Tailstock sleeve Dia. | mm | Ø100 | Ø100 |
| Tailstock sleeve travel | mm | 200 | 200 |
| Tailstock sleeve bore taper | MT.No.6 | MT.No.6 | |
| Others | |||
| Power of main motor | kW | 18.5/22 | 18.5/22 |
| Bed structure | 45°Slant bed | 45°Slant bed | |
| Min. input | mm | 0.001 | 0.001 |
| Repeatability | mm | ≤0.006 | ≤0.006 |
| Chuck Dia. | 12 | 12 | |
| Overall dimensions (L×WxH) | mm | 5500×1980×2260 | 5500×1980×2260 |
| Net weight | kg | 7000 | 7500 |
The specifications, text descriptions, confiqurations, pictures, colors, etc. given herein are subject to alternation without notice and thus wthout any obligation.
