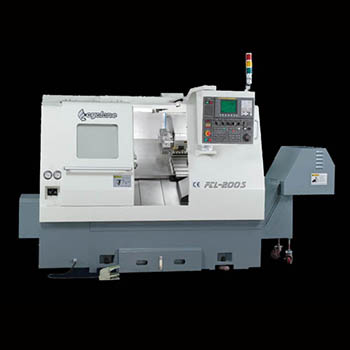

Standard Accessories:
1/4 HP coolant pump (FCL-200S)
3-bar-750w high pressure coolant pump (FCL-250S, 250SL, 300S)
100 liter capacity cooling tank
Hydraulic turret
Auto lubrication system
Tools & tool box
Work lamp
Three-color alarm light
Hydraulic unit
Heat exchanger unit of electric box cooling
Chip conveyor and bucket
Programmable tailstock
Optional Accessories:
C.E. Norms
Auto tool setter
Manual tool setter
C-axis contour capability
．Duplomatic SMODT, VDI, 12-position power turret with Fanuc alpha spindle motor (Excluding rotating tool holder and tools)
．High resolution magnetic pulse coder incorporated into main AC spindle motor for precision contour / index control
．Hydraulic disk brake for locking and stabilization during milling and contouring
Main power transformer
Auto door & safety switch
Auto parts catcher
Prevent crash install of each axis(Safety equipment)
Bar feed
Parts cut off detector
Larger spindle motor
Larger hydraulic chuck
LS servo turret
| ITEMS | FCL-200S | FCL-250S | FCL-250SL | FCL-300S | |||
| Capacity | No. of axes | STD:2-axis / OPT: 3-axis (C-axis ) (available with Fanuc 0i-TC) | |||||
| Swing over bed | Ø480 mm (8.9") | Ø600 mm (23.62") | Ø630 mm (24.8") | ||||
| Max. turning dia. | Ø280 mm (11.02") | Ø330 mm (12.99") | Ø442 mm(17.4") | ||||
| Working length | 462 mm(18.18") | 430 mm (16.92") | 690 mm (27.16") | 700 mm (27.56") | |||
| Spindle | Spindle nose bar internal taper | ASA A2-6 MT No.6 | ASA A2-6 MT No.6 | ASA A2-8 Ø96 mm Taper 1/20 | |||
| Spindle bore | Ø61 mm (2.4") | Ø77 mm (3.03") | Ø90 mm (3.54") | ||||
| Bar capacity | Ø51 mm (2.0") | Ø65 mm (2.56") | Ø77 mm (3.0") | ||||
| Range of spindle speed | 25-4200 rpm | 25-3500 rpm | STD:25-3500 rpm (10") / OPT:25-2800 rpm (12") |
||||
| Living tools speed | OPT:25-4000 rpm (available with Fanuc 0i-TC | ||||||
| No. of spindle speed | Infinitely variable | ||||||
| Chuck | Hydraulic chuck | Ø210 mm (8") | Ø254 mm (10") | STD: Ø254 MM (10") / OPT:25-2800 rpm (12") |
|||
| Turret | Tool station (random) | STD:HYD.LS-160A-8T | STD:HYD LS-240-12 / OPT:SERVO LS-240-12 | ||||
| O.D. tooling | □ 20 x 20 mm | □ 25 x 25 mm | |||||
| I.D. tooling | 32 mm | 40 mm (1.57") | |||||
| X/Z axis | X-axis travel | 142 mm (5.59") | 180 mm (7.08") | 250 mm (9.84") | |||
| Z-axis travel | 475 mm (18.7") | 460 mm (18.11") | 743 mm (29.25") | 720 mm (28.35") | |||
| X&Z axis rapid traverse | 30 m/min (1181 ipm) | 30 m/min (1181 ipm) | 30 m/min (1181 ipm) | ||||
| X&Z cutting feedrate | 0.001-500 mm/rev | 0.001-500 mm/rev | 0.001-500 mm/rev | ||||
| Motor | Spindle motor | Fanuc 0i-TC αP18i-9/11 kw | Fanuc 0i-mate βP18i-9/11 kw | Fanuc 0i-TC | αP22i-11/15kw | Fanuc 0i-TC | αP30i-15/18.5 kw |
| α8i/ 1.6kw | α12i/3.0 kw | ||||||
| Axial motor | Fanuc 0i-TC α8i-1.6 kw | Fanuc 0i-Mate β12i-1.8 kw | |||||
| Hydraulic oil pump | 2HP | 1.5(2HP) | 1.5(2HP) | ||||
| Coolant pump | 1/4 HP | 750 w (1HP) | 750 w (1HP) | ||||
| Programmable Tailstock |
Quill dia. | Ø75 mm (2.95") | Ø75 mm (2.95") | Ø90 mm (3.54") | |||
| Quill stroke | 80 mm (3.15") | 80 mm (3.15") | 100 mm (3.94") | ||||
| Taper of center | MT No.4 | MT No.4 | MT No.5 | ||||
| Tailstock travel | 420 mm (16.53") | 420 mm (16.53") | 668 mm (26.29") | 625 mm (24.6") | |||
| Tank Capacity | Hydraulic tank | 40 Liter | 60 Liter | 60 Liter | |||
| Coolant tank | 100 Liter | 100 Liter | 100 Liter | ||||
| Measurements | Floor space (LxW) | 3350 x 1575 mm | 3550 x 2000 mm | 4000 x 2100 mm | 4000 x 2100 mm (157.5" x 82.7") | ||
| Height | 1800 mm | 2000 mm | 2000 mm | 2130 mm (84") | |||
| Weight (N.W/G.W) | 4400 kgs / 5330 kgs | 4850 kgs / 5350kgs | 6150 kgs / 6400 kgs |
6250 kgs / 6500 kgs | |||
| -L&W Machine Tools, Inc. reserves the right to alter any mechanical specification without prior notice in the interests of product development | |||||||
