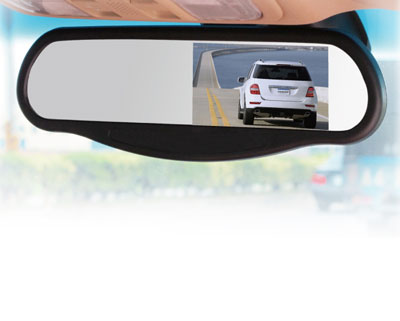

Rear View Mirror Monitor

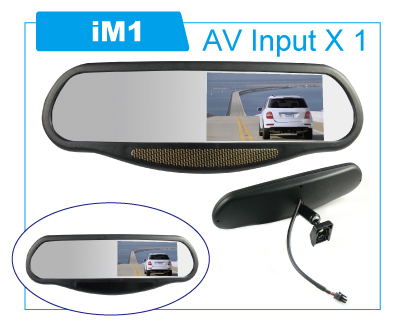

IM1 - AV INPUT X 1
IM1

.4.3 Inches High Resolution TFT LCD Module

.Anti Dazzle Mirror

.Auto Adjust Brightness of Monitor for Day ad Night Mode

.Brightness Memory Function



規格數據

1.  Size : 4.3 inches
2.  Display resolution : 480 (RGB) x 272
3.  Brightness: 450×0.45 cd/㎡
4.  Compatible with NTSC or PAL system
5.  Operation temperature: -20°C~70°C
6.  Storage temperature: -30°C~80°C
7.  Power range: DC 10~15V
8.  Standby power consumption≦ 40mA / 12V
9.  Dimension: 280 × 96 × 30mm
10. Net weight :   375 g

11. Made in TAIWAN
