Double Column Machining Center

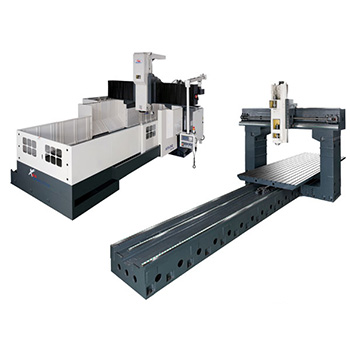

Double Column Machining Center
BMC-3224
Outstanding Features
The column and bridge are annealed and stress relieved to ensure structural stability.
Linear guideways on X and Y axes, box ways on Z axis.
High precision pre-loaded linear guideways feature low frictional co-efficient low stick-slip and high thrust force sensitivity ensuring dynamic movement accuracy.
6,000 RPM gear-driven spindle is standard.
32-tool arm-type ATC.
Extra wide door for easy loading and unloading of workpieces.
The ideal for: Automobile forming dies, plastic injection molds, machine parts machining, aerospace parts machining.
Specification
| MODEL | BMC-3224 | |
| Travel | X axis travel | 3200 mm |
| Y axis travel | 2700 mm | |
| Z axis travel | 920 (1100) mm | |
| Spindle nose to table | 200~1120 (200~1300) mm | |
| Distance between spindle center to bridge | 475 mm | |
| Door Width | 2350 mm | |
| Spindle | Spindle speed | 50~6000 rpm |
| Spindle motor max. rating | 18.5 (OPT. 26) kw | |
| Axis motor max. rating | 7/7/7 kw | |
| Taper size | BT-50 | |
| Table | Working area | 3200x2100 mm |
| Max. loading | 15000 kgs | |
| T-Slots (No. x Width x Pitch) | 10x 22 x 200 mm | |
| Feed rates | Rapids on X / Y/ Z axis | 15/12/12 m/min |
| Max. cutting feedrate | 1-6000 m/min | |
| Tool Magazine | Number of tool | 32 (OPT. 40/60) |
| Type of tool | BT - 50 | |
| Max. tool diameter | 127 mm | |
| Max. tool weight | 15 kgs | |
| Max. tool length | 300 mm | |
| Tools to tools (change time) | 8 sec | |
| Accuracy | Positioning | JIS ±0.005/300 mm |
| Repeatability | ±0.005 mm | |
| Roundness | 0.03/300 mm | |
| Dimensions | Air source required | 6 kgs/cm2 |
| Machine weight (Net) | 38000 kgs | |
| Power source required (KVA.) | 50 KVA | |
| Floor space (L x W x H) | 8470x5240x4600 mm | |
| Standard Accessories | Optional Accessories |
| Fanuc 18i-MB controller | Controller (Heidenhain, Seimens, Mitsubishi) |
| Spindle 6000rpm (gear) | Z-axis travel up to 1100mm |
| Automatic lubricating system | Z-axis travel up to 1500mm (for direct drive w/ Z-axis linear guide way) |
| Automatic lubricating oil collector for 3 axes | Heighten column by 200mm |
| Spindle and gear transmission/temperature control | ATC (40, 60 tools) |
| Twin screw and one link type chip conveyor with tank | Spindle 8000rpm (belt-drive) |
| Heat exchanger for electric cabinet | 30/35HP spindle motor upgrade (Fanuc 32xx only) |
| Foot switch for tool clamping/unclamping | Ball screw cooling system (Y/Z axis) |
| 32 tools arm-type tool change | Ladder for maintenance |
| Spindle oil cooler | X-axis linear guide roller type (Schneeberger) |
| Full splash guard | Z-axis linear guide way |
| Air blow for chip (M Code) | Direct drive spindle 8000rpm or 10000rpm (for linear guide way only.) |
| X & Y linear guideway (roller type) | Y-axis linear guide roller type (Schneeberger) |
| Ball screw cooling system (X-axis) | 90° angular head |
| Foundation bolt kit | Manual universal head |
| Work light | Extended head with clamping/unclamping tool |
| RS-232 interface (10 meters)/RJ45 | Auto tool length measurement |
| Oil skimmer | Auto workpiece Measurement device |
| Maintenance and operational manual | Coolant through spindle |
| Twin hydraulic counter weight cylinders | Linear scales feedback (Heidenhain/Fagor) |
| CNC rotary table & tailstock |
