Metalloid Wire Cut Machine

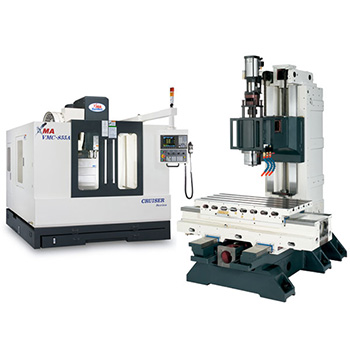

CNC Vertical Machining Center

VMC-855/855A

Outstanding Features

The pyramid machine construction features a perfect structural ratio. The major cast parts are scientifically rib reinforced.
This machine construction effectively extends service life and features stable thermal effect and added dampening effect.
When installing 3 axes ball screws, ball bar testing and laser equipment are employed for parameter adjustment to achieve the best possible accuracy.
All slideways are hardened and precision ground and then coated with high quality, low friction Turcite-B for maximum wear resistance. The mating surfaces are precision treated for long term accuracy.
Optimized machine construction. The major machine parts, such as base, column and saddle, etc., are manufactured from high quality alloy cast iron. It features maximum material stability, minimum deformation and lifetime accuracy.

Specification

Model	VMC-855 / 855A
TRAVEL	X x Y x Z axis	800 x 500 x 520 mm
	Spindle nose to table	100~620 mm
	Spindle center to solid column surface	550 mm
TABLE	Working area	950 x 460 mm
	Max. loading	500 kg
	T-Slots (No. x Width x Pitch)	4 x 18 mm x 100 mm
SPINDLE	Tool shank	BT-40
	Speed	8,000 rpm
	Transmission	Direct-Speed Belt Drive
	Bearing lubrication	Grease
	Cooling system	Oil cooled
	Spindle motor max. rating	7.5 kw (10HP)
	Axis motor max. rating	1.5 kw (2 HP)
FEED RATES	Rapids on X & Y & Z axes	16 / 16 / 12 m/min
FEED RATES	Max. cutting federate	10 m/min
TOOL MAGAZINE	Tool storage capacity	16 armless/ 24 arm
	Type of tool (optional)	BT- 40 (CAT- 40)
	Max. tool diameter	100 mm / 80 mm
	Max. tool weight	7 kg
	Max. tool length	300 mm / 250 mm
AVG.CHANGING TIME (ARMLESS / ARM)	Tool to tool	7 sec. / 3 sec.
	Chip to chip (50% Z axis)	11 sec. / 7 sec.
	Air source required	6 kg / cm²up
ACCURACY	Positioning	±0.005 mm/300 mm
ACCURACY	Repeatability	±0.003 mm
DIMENSION	Machine weight (Net / Gross)	Approx 4,800 kg (5,000kg) Approx 5,150 kg (5,350kg)
	Power source required (KVA.)	15KVA
	Floor space (L x W x H)	2,270 x 2,465 x 2,600 mm
	Shipment advice	1 x 40'HQ (4 sets)

Standard Accessories	Optional Accessories
Spindle speed 8,000 rpm	Spindle speed 10,000 / 12,000 rpm
Operation manual	Coolant through spindle (CTS)
Spindle air blast (M code)	Controller (Fanuc / Siemens / Heidenhain)
Controller (MITSUBISHI M70)	German ZF gear box
Cycle finish indicator and alarm	Work piece measurement system
Heat exchange for electric box	Auto tool length measuring device
Tool box	CNC Rotary Table
Spindle air blow system	Oil skimmer
Auto lubricating system	Link type / screw type chip converyor
Fully splash guard	Direct Driver 12,000/15,000 rpm
Remote handwheel	Spindle coolant ring
Spindle orientation	Coolant throngh tool holder
Coolant equipment
Auto tool changer
Rigid tapping
RS 232C port (10M)
Leveling kits
Fluorescent lamp 2pcs
Transformer
Spindle oil cooler
Coolant gun
Air socket
