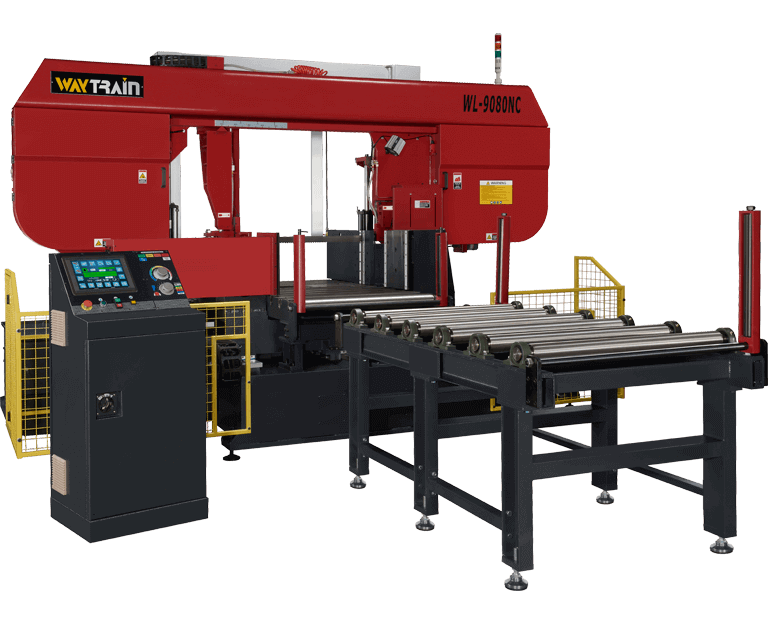

H800 W900
Human-machine interface control panel is easy to set and operate, reduce wasteful switches
Notifications of malfunction diagnosing on touch screen by 3D animation and automatically stop the machine, the 12 kinds of devices is managed by intelligent system
The angle of inclination of vice can avoid the interference for feeding with large material
Linear guides are used on saw-bow movement and feeding, precision positioning control by magnetic scale
Blade guide arm automatically slides to vise clamping position
The helical gear reducer enhances torque output under heavy working loads for a highly efficient cutting rate
With the strong flushing system, allowing the coolant shower to flush the cutting chips of table completely at designated times
Blade broken detection device, damage of the blade will trigger alarm and automatically stop the machine, prevent the materials from scraping
Blade tilt detect sensor, deviation of the blade will trigger alarm and automatically stop the machine
Inverter controls blade speed and readout in human-machine interface control panel
Specifications
| Capacity | ● 800 mm | Capacity | ▅ 800 x 800 mm |
| Capacity | ▅▅ 800 x 900 mm | Blade Size | 5400 x 1.6 x 8900 mm |
| Blade Speed | 25 ~ 85 mpm | Blade Motor | 10 HP (7.5kW) |
| Hydraulic Motor | 5 HP (3.7 kW) | Coolant Pump | 1/2 HP (0.38 kW) |
| Hydraulic Tank | 120 L | Coolant Tank | 200 L |
| Table Height | 920 mm | Packing Size | 4700 x 2320 x 2400 mm |
| N.W./G.W. | 11100 Kg |
