Mold Ejector Pin
Stepped Ejector Pin
SKH-51/SKD-61

Specification



Material : SKH-51
Hardness: HRC-58-60

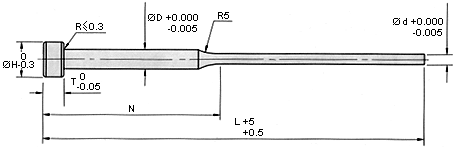

H T D d L=100 L=150 L=200
N=40 N=50 N=70 N=70 N=100
3 4 1.5 0.6
3 4 1.5 0.8
3 4 1.5 1.0
4 4 2.0 0.8
4 4 2.0 0.9
4 4 2.0 1.0
4 4 2.0 1.1
4 4 2.0 1.2
4 4 2.0 1.5
5 4 2.5 0.8
5 4 2.5 1.0
5 4 2.0 1.1
5 4 2.0 1.2
5 4 2.0 1.3
5 4 2.0 1.4
5 4 2.0 1.5
6 4 3.0 1.0
6 4 3.0 1.2
6 4 3.0 1.4
6 4 3.0 1.5
7 4 4.0 1.5
7 4 4.0 2.0
7 4 4.0 2.5
7 4 4.0 3.0



Material : SKD-61
Hardness: HRC-52~54
H T D d L=100 L=150 L=200
N=40 N=50 N=70 N=70 N=100
6 4 1.5 0.6
6 4 1.5 0.8
6 4 1.5 1.0
6 4 2.0 0.8
6 4 2.0 0.9
6 4 2.0 1.0
6 4 2.0 1.1
6 4 2.0 1.2
6 4 2.0 1.5
6 4 2.5 0.8
6 4 2.5 1.0
6 4 2.0 1.1
6 4 2.0 1.2
6 4 2.0 1.3
6 4 2.0 1.4
6 4 2.0 1.5
6 4 3.0 1.0
6 4 3.0 1.2
6 4 3.0 1.4
6 4 3.0 1.5
8 4 4.0 1.5
8 4 4.0 2.0
8 4 4.0 2.5
8 4 4.0 3.0

Material : SKD-61
Core Hardness : 40~42
Surface Hardness : HV 900o~1100o
H T D d L=100 L=150 L=200
N=40 N=50 N=70 N=70 N=100
6 4 1.5 0.6
6 4 1.5 0.8
6 4 1.5 1.0
6 4 2.0 0.8
6 4 2.0 0.9
6 4 2.0 1.0
6 4 2.0 1.1
6 4 2.0 1.2
6 4 2.0 1.5
6 4 2.5 0.8
6 4 2.5 1.0
6 4 2.0 1.1
6 4 2.0 1.2
6 4 2.0 1.3
6 4 2.0 1.4
6 4 2.0 1.5
6 4 3.0 1.0
6 4 3.0 1.2
6 4 3.0 1.4
6 4 3.0 1.5
8 4 4.0 1.5
8 4 4.0 2.0
8 4 4.0 2.5
8 4 4.0 3.0
