Products

Mold Ejector Pin

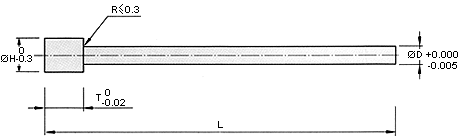

Straight Core Pin
SKH-51/SKD-61

Specification



Material: SKH-51
Hardness: HRC 58~60

T H D L
4 2.5 1.0-1.5 50
4 3.5 1.6-2.0 50
4 4.0 2.0-2.5 50
4 5.0 2.6-3.0 50
4 5.5 3.1-3.5 50
4 6.0 3.6-4.0 50
4 6.5 4.1-4.5 50
4 7.0 4.6-5.0 50
4 7.5 5.1-5.5 50
4 8.0 5.6-6.0 50
4 8.5 6.1-6.5 50
4 9.5 6.6-7.0 50
4 10 7.1-7.5 50
4 11 7.6-8.0 50
4 11.5 8.1-8.5 50
4 12 8.6-9.0 50
4 12 9.1-9.5 50
4 13 9.6-10 50



Material: SSKD-61
Hardness: 52~54

T H D L
4 2.5 1.0-1.5 50
4 3.5 1.6-2.0 50
4 4.0 2.0-2.5 50
4 5.0 2.6-3.0 50
4 5.5 3.1-3.5 50
4 6.0 3.6-4.0 50
4 6.5 4.1-4.5 50
4 7.0 4.6-5.0 50
4 7.5 5.1-5.5 50
4 8.0 5.6-6.0 50
4 8.5 6.1-6.5 50
4 9.5 6.6-7.0 50
4 10 7.1-7.5 50
4 11 7.6-8.0 50
4 11.5 8.1-8.5 50
4 12 8.6-9.0 50
4 12 9.1-9.5 50
4 13 9.6-10 50
