Products

Crushing recycled series

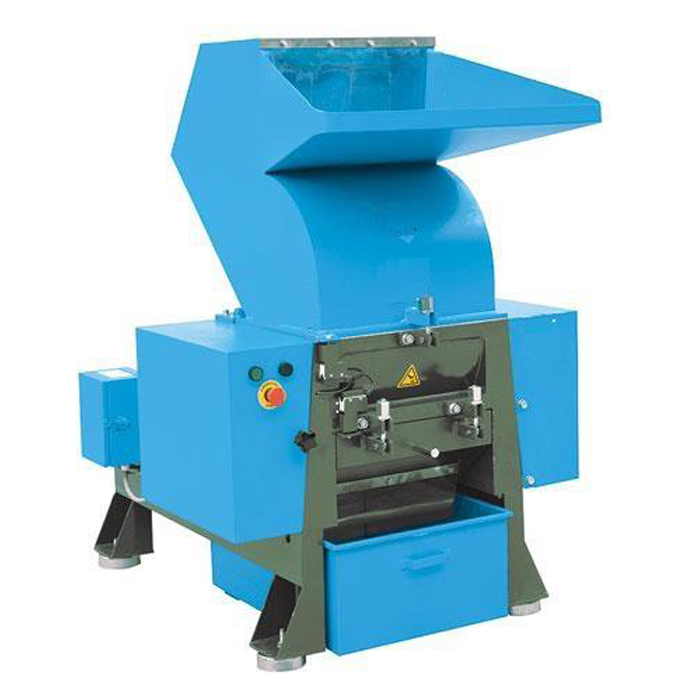

Strong Crusher

BD SC Series Strong Cursh has abundance of functions.Its main function is to crush all sort of soft of hard platic crushing massive ,spherical,or strip-like plastic into tiny to recycle into tiny bits to recycle. The reuse level of plastic is increased due to this process.
Features:
1)The whole machines is manufactured from stainless steel
2)The entire machine is put firmly together and its function would not be affected by long term usage
3)Heavy burden type bearing with oil-sealed device and soundproof ply can keep the unit from shocking and noise.and prevent the materi from polllution.
4)Equipped with motor overload protective device and chained power-off system to ensure safe operation ,especially for blade-cleaning.
5)Blades are made of imported material.SKD-11,through special manufacture process and heat treatment,the blade  becomes more durable.
6)Special claw and paddle blade desings can crush any hard or soft material extremely easier.
7)Adjustable blade can be sharpened up while blunt and reused to prolong its life.
8)The separation design of the crushing chamber and material bin allows the mesh screen to discharge and clean easily .
9)Small type is equipped with castor for easy moving.while heavy type equipped with adjustable level pads to keep stability when working.

Specification

型号Model 粉碎口径(mm)
Crushing chamber
粉碎能力(Kg)
Crushing ability
刀片数量Blade number 筛网孔直径Φ(mm) 功率Power 外形尺寸(mm
)Dimension
定刀
Fixed
动刀Rotation KW 转速r/min
BD-SC03 150*160 50-150 1*2 3*3 6 2.2 520 670*430*920 160
BD-SC05  250*200 100-200 1*2 4*3 8 3.75 520 940*620*1090 290
BD-SC10  380*240 200-300 1*2 3*6 10 7.5 590 1220*840*1290 516
BD-SC15  480*290 300-350 1*2 3*7 10 11 520 1430*940*1550 850
BD-SC20  504*320 300-400 1*2 3*7 12 15 515 1620*1070*1770 900
BD-SC30/40  700*480 450-600 2*2 3*9 12 22 510 2150*1430*2200 1800
BD-SC40/50/60  790*550 600-800 2*2 3*9 14 37 500 2200*1590*2630 3000
BD-SC50/60  960*610 800-1000 2*2 3*10 18 37 510 2250*1800*2760 4000
BD-SC75  940*630 1500-1800 2*2 4*10 18 56 510 2300*1850*2760 5000
