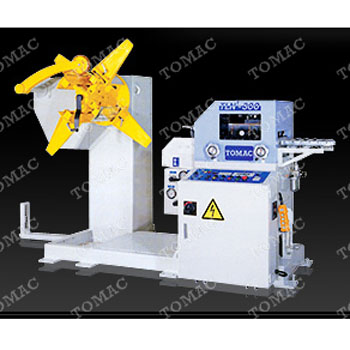

3 in 1 Servo Straightener Feeder w/Uncoiler

General Size

3 in 1 Servo Straightener Feeder w/Uncoiler

TLN Series

Specification

Specification

Item	TLN1-300	TLN1-400	TLN1-500	TLN1-600
Width of Material (mm)	75 ~ 300	75 ~ 400	75 ~ 500	75 ~ 600
Thickness of Material (mm)	0.4 ~ 2.3
Max. Coil Weight (kg)	2000		3000
Max. Coil I.D.(mm)	508
Max. Coil O.D.(mm)	1200
Max. Speed (m/min)	16
Feed Pitch Accuracy (mm)	±0.15
Feed Roll	Upper 1 / Lower 1
Work Roll	Upper 4 / Lower 3
Eccentric Roll	Upper 1
Power Supply	220VAC 60HZ
Air Supply	5 kg/cm
Uncoiler Expansion	Hydraulic
Main Motor (kW)	AC 2.0		AC 3.5
Uncoil Motor (kW)	AC 0.75		AC 1.5
Feed Level (mm)	Customer request ±100

Straightening Performance

Model / Width / Thickness	0.3	0.6	1.0	1.2	1.4	1.6	2.0	2.3
TLN1- 300	300							220
TLN1- 400	400						280	210
TLN1- 500	500					390	250	190
TLN1- 600	600				400	300	240	180

※The above figures are for the material having tensile strength 400 N/mm². Yield strength 275 N/mm².

Standard Accessories

1.Electric eye loop control system
2.Feed and straightener rolls hard chrome plated
3.Outgoing catenary to assist and support the material
4.Power arm hold down device
5.Feeding line easily adjusted by advance worm gear screw jacks device
6.Uncoiler with inverter control
7.Reference indicator adjuster
8.Inverse curve roll, easy to set down curve or up curve feed exit direction
9.Uncoiler with air disc brake
10.Coil side guide
