Heavy Duty Metal

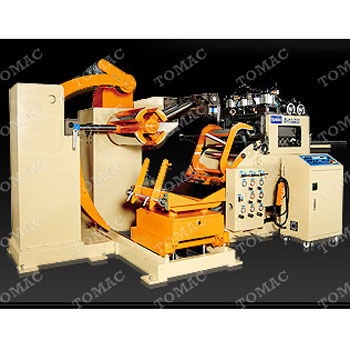

3 in 1 Servo Straightener Feeder w/Uncoiler
TLN4 Series
Specification
|
Specification
|
|
Item
|
TLN4-400
|
TLN4-500
|
TLN4-600
|
TLN4-700
|
TLN4-800
|
TLN4-1000
|
|
Width of Material (mm)
|
100 ~ 400
|
100 ~ 500
|
100 ~ 600
|
100 ~ 700
|
100 ~ 800
|
100 ~ 1000
|
|
Thickness of Material (mm)
|
0.8 ~ 6.0
|
|
Max. Coil Weight (kg)
|
3000
|
6000
|
|
Max. Coil I.D. (mm)
|
508
|
|
Max. Coil O.D. (mm)
|
1200
|
1500
|
|
Max. Speed (m/min)
|
16
|
|
Feed Pitch Accuracy (mm)
|
±0.15
|
|
Feed Roll
|
upper 1 / lower 1
|
|
Pinch Roll
|
upper 1 / lower 1
|
|
Eccentric Roll
|
upper 1
|
|
Work Roll
|
upper 4 / lower 3
|
|
Power Supply
|
220VAC 60HZ
|
|
Air Supply
|
5 kg/cm
|
|
Uncoiler Expansion
|
Hydraulic
|
|
Main Motor (kW)
|
AC 5.0
|
AC 7.0
|
|
Uncoil Motor (kW)
|
AC 1.5
|
AC 2.2
|
|
Feed Level (mm)
|
Customer request ±100
|
|
