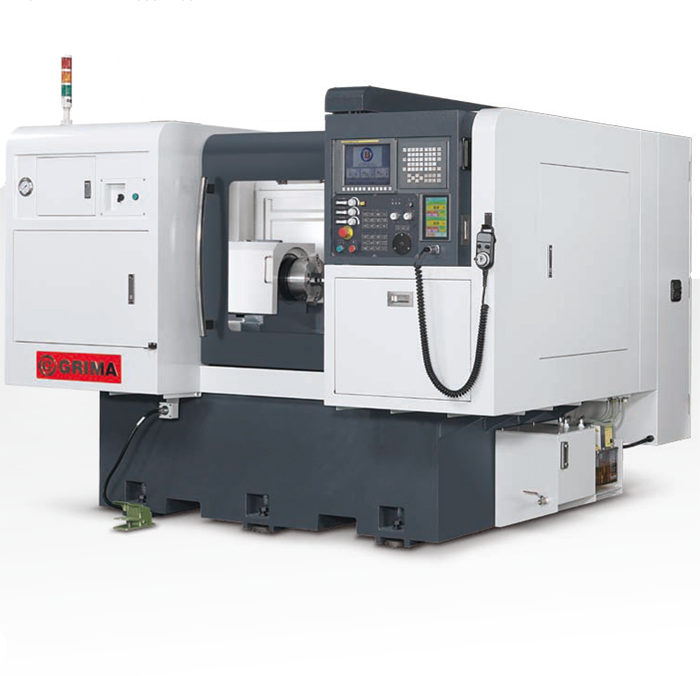

Twin grinding wheel spindles
Available to mount with turning Spindle(optional)
Max. grinding depth is 200 mm
FANUC controller
Fully enclosed splash guard
X-axis / Y-axis / Z-axis stroke is
390 mm / 350+200 mm / 350+200 mm
Optimal structure design High Stability! High Rigidity!
• Linear ways & Ball screws
The X-axis & Z-axis all employ high precision class linear ways and ball screws to achieve the highest accuracy and rigidity.
• High quality Cast Iron
The structural parts are manufactured from high quality FC30 cast iron, tempered and stress relieved for outstanding machining accuracy and stability.
• Massive Base
The oversized and massive base is rib reinforced according to dynamic principle, resulting in exceptional stability.
• Servomotor Drive
X-axis, Y-axis and Z-axis movements are driven by Seromotor with minimum setting unit of 0.0001 mm.
Twin grinding spindles
Grinding spindle + Turning spindle assembly
FANUC controller
• Powerful functionality provides various parameter setting for multi-face grinding.
• Max. 16 faces grinding in one setup of workpiece
Touch-Sensing Screen
• It's used for controlling motor current in various grinding conditions.
• Also with sensing grinding function
|
Type |
KG-500 |
|
|---|---|---|
|
Working Capacity |
Grinding dia. range |
ø4~ø320 mm |
|
Max. grinding depth |
200 mm |
|
|
Max. swing range of workpiece |
ø450 mm |
|
|
Swing range within the water proof cover |
ø320 mm |
|
|
Controller System |
Controller |
FANUC |
|
Working Head |
Spindle speed |
0~1000 rpm |
|
X-axis feedrate/stroke |
10 M/min / 390 mm |
|
|
X-axis minimum command unit |
0.0001 mm |
|
|
Working head swiveling angle |
-5°~+30° |
|
|
Working Table |
Y-axis & Z-axis feedrate |
10 / 10 M/min |
|
Y-axis & Z-axis max. stroke |
350+200 / 350+200 mm |
|
|
Y-axis & Z-axis minimum command unit |
0.0001 / 0.0001 mm |
|
|
Distance from spindle center to the ground |
1100 mm |
|
|
Hydraulic System |
Oil Tank Capacity |
30 L |
|
Cooling System |
Coolant Tank Capacity |
200 L |
|
Motor |
Hydraulic motor |
0.75 Kw (1HP) |
|
Coolant pump motor |
0.18 Kw (1/4HP) |
|
|
X-axis & Y-axis & Z-axis servomotor |
1.6 / 1.6 / 1.6 Kw |
|
|
Wheel motor (kW) |
4.0，2P (5HP) |
|
|
Spindle motor |
2.2，4P (3HP) |
|
|
Others |
Capacity of automation lubrication pump |
4 L |
|
Measurement (L*W*H)- with accessories |
3250x2150x1900 mm |
|
|
Machine Weight |
4750 kg |
|
Standard accessories |
|---|
|
CNC Controller |
|
Inverter for X-axis work piece motor |
|
Inverter for Y-axis work piece motor |
|
Inverter for Z-axis work piece motor |
|
Y-axis grinding spindle |
|
Z-axis grinding spindle |
|
Hydraulic chuck |
|
Hydraulic cylinder |
|
3-coloe pilot lamp |
|
Working lamp |
|
Tool box |
|
Automation lubrication pump |
|
Coolant tank and coolant pump |
|
Paper filter system |
|
Magnetic chips Conveyor |
|
Hydraulic unit with pump |
|
Heat exchanger for electrical cabinet |
|
Diamond Dresser |
|
Foundation bolts and blocks |
|
Mechanical, electrical operation manuals |
|
Full-enclosed cover |
