Specification
Double turrets
Double turrets saddle
|

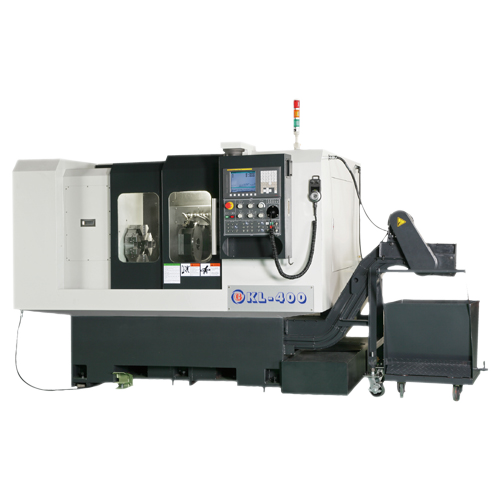

MODEL |
KL-400 |
|---|---|
|
Max swing over bed |
ø350mm |
|
Max turning dia |
ø75mm(Collet type) |
|
Max turning length |
200mm |
|
X axis travel |
300mm |
|
Z axis travel |
±250mm |
|
X axis max speed |
10 m/min |
|
Z axis max speed |
20 m/min |
|
Spindle type |
Two-way through-hole |
|
Spindle speed range |
3000rpm |
|
Spindle drive motor |
7.5/5.5 kw |
|
Hydraulic motor |
2HP |
|
Coolant tank cap city |
120L |
|
Volume |
3150X2150X1750 |
|
Weight |
4450kg |
|
STANDARD ACCESSOREIS |
|
|---|---|
| FANUC CNC controller | 1SET |
| Hydraulic turret | 2SET |
| Boring bar holder | 8PCS |
| OD tool holder | 4PCS |
| Facing holder | 2PCS |
| Copper ball | 20PCS |
| Sleeve ø8~ø20mm | 2PCS For Each |
| Alarm and working lamp | 1PCS |
| Tool and tool box | 1SRT |
| Chip conveyor and chip bucket | 1SET |
| Foot switch | 1PCS |
