Specification
Specification

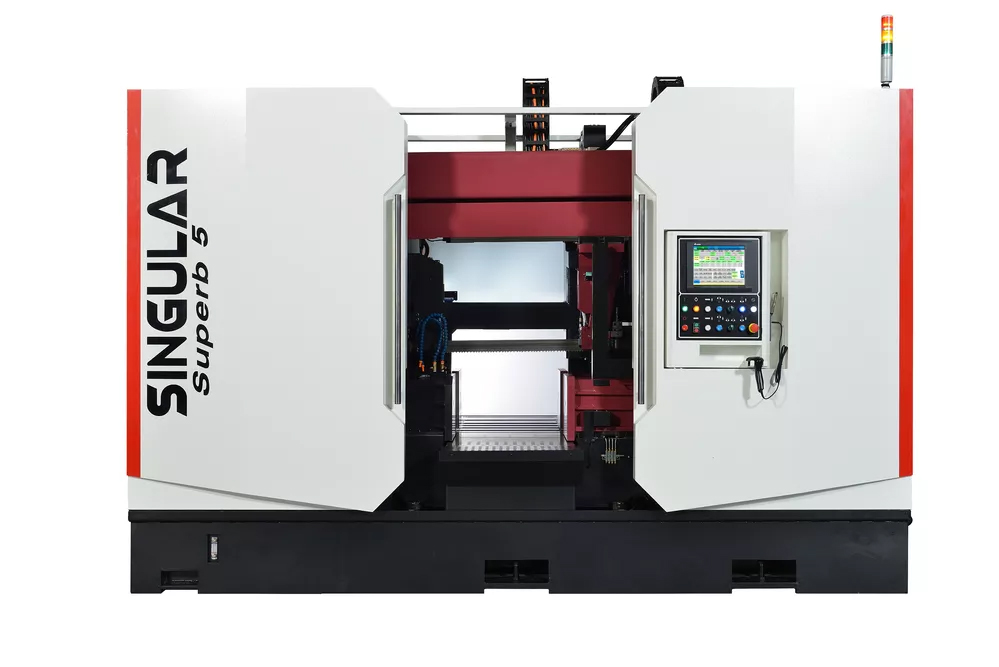

| Model | S5 | |
|
Cutting Capacity |
● | 560 mm |
| ■ | 560×560 mm | |
| Saw Blade | Speed | 10 - 150 M/min. |
| Size | 7800×67×1.6 mm | |
| Tension | Hydraulic | |
| Motors | Saw Blade | 20 HP (15 kw) |
| Hydraulic | 5 HP (3.7 kw) | |
| Coolant | 1 HP (0.75 kw) | |
| Wire Brush | 90 W | |
|
1.5 HP (1.125 kw) | |
| Chip Conveyor | 1/4 HP (0.187 kw) | |
| Bar Feed | 1.3 kw | |
| Blade Feed | 2.0 kw | |
| Tank | Hydraulic | 130 L (34 gal) |
| Coolant | 300 L (79 gal) | |
| Bed Height | 720 mm (28.3") | |
| Dimensions |
3800 L×2260 W×2440 H mm (149.6"×88.9"×96") |
|
| Net Weight | 9500 kg | |
| ☆For technical demand, product specifications and equipment accessories are subject to change without notice. | ||
Standard Equipment＆Accessories：
| 1 | Variable blade speed controlled by high efficient inverter |
| 2 | Servo controlled automatic feed system |
| 3 | Laser controlled blade approach |
| 4 | Vise collocate ligh sensor to capture meterial length |
| 5 | Vise collocate linear decoder to capture meterial width |
| 6 | Contactless band deviation monitor |
| 7 | Hydraulic blade tension |
| 8 | Blade breakage detector and shutoff |
| 9 | Full computer numerical control |
| 10 | Cutting database included 300 different materials |
| 11 | Hydraulic clamp adjustable carbide insert |
| 12 | Roller feed table |
| 13 | High efficient pressure washer of band cleaning and chip removing |
| 14 | Multiple design of anti-vibration structure |
| 15 | High efficient spiral and track style chip conveyors |
|
16 |
Hydraulic anti-vibration roller guide |
| 17 | Variable brush speed controlled by inverter |
| 18 | Entire machine uses roller type linear guide |
| 19 | Fore-and-aft shift capability for both front and rear vise |
| 20 | Rotary control board with 10.4 inch Human machine interface |
| 21 | CE-certificated full-boxed cover |
| 22 | High quality NORD Motor |
| 23 | 2-meter roller stand |
| 24 | Tool box |
Optional Equipment
| 1 | Powered roller stand |
| 2 | Variable vise pressure |
Electrical control options
| 1 | QR Code scan system |
| 2 | Cutting data output |
| 3 | Remote data reading connection |
| 4 | Database connection |
| 5 | Production automation connection |
