Superb Carbide Band Saw

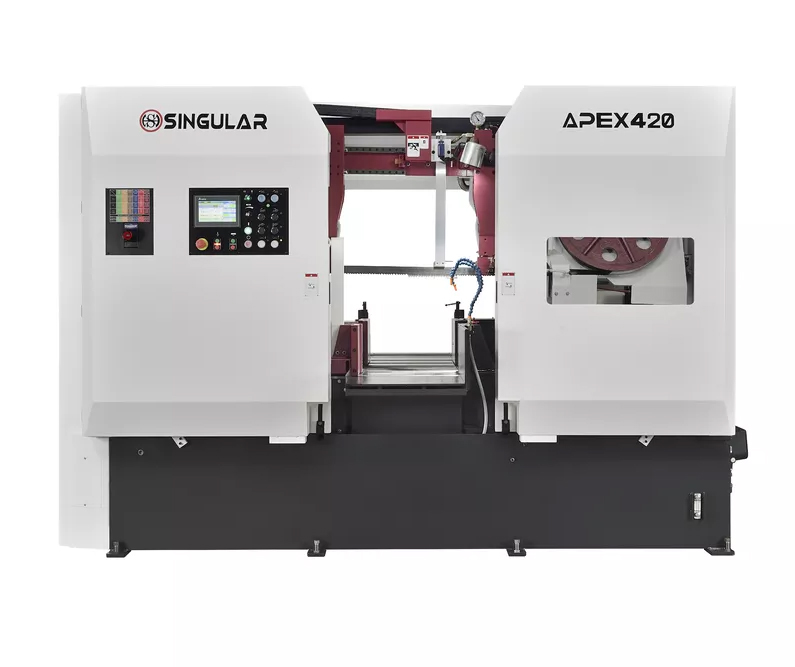

Superb Carbide Band Saw APEX420
APEX420
CUTTING CAPACITY: W10×H10~W400×H330mm
Specification
Specifications
| 型號 | APEX420 | |
| Cutting Capacity | ● | 10~420 mm |
| ■ | W10×H10~W420×H420 mm | |
| Bundle Cutting | MAX. | W330×H200 mm |
| MIN. | W165×H80 mm | |
| Saw Blade | Size | 5300×41×1.3 mm |
| Speed | 16~85 m/min | |
| Tension | Hydraulic | |
| Motor Output | Saw Blade | 5.5 KW (7.5 HP) |
| Hydraulic Pump | 2.25 KW (3 HP) | |
| Coolant Pump | 0.22 KW(1/4 HP) | |
| Tanks | Hydraulic | 40L |
| Coolant | 150L | |
| Working Height | 780mm | |
| Dimensions | W3100×L2200×H2250mm | |
| Net Weight | 3600kg | |
| ☆For technical demand, product specifications and equipment accessories are subject to change without notice. | ||
Standard Equipment & Accessories
| 1 | PLC control for all electric and hydraulic functions. |
| 2 | Infinitely variable blade speed controlled by inverter. |
| 3 | Idle wheel motion detector with blade stalling and breakage shutoff. |
| 4 | Shuttle type automatic feed. |
| 5 | Hydraulic blade tension. |
| 6 | Automatic blade height control and rapid approach. |
| 7 | Carbide blade guide with roller bearing. |
| 8 | Length setting: Magnetic scale. |
| 9 | 20 workstations presetting. |
| 10 | Automatic chip conveyor. |
| 11 | Power driven blade-cleaning wire brush. |
| 12 | Flushinghose for machine cleaning. |
| 13 | Work lamp. |
| 14 | One set of tools in tool box. |
| 15 | One set of 2-meter roller stand. |
Optional Equipment
| 1 | Variable vise pressure |
| 2 | Blade deviation monitor. |
| 3 | Out of stock monitor. |
| 4 | Nesting fixture for bundle cutting. |
