Machining Center ／ Roller Guide Way

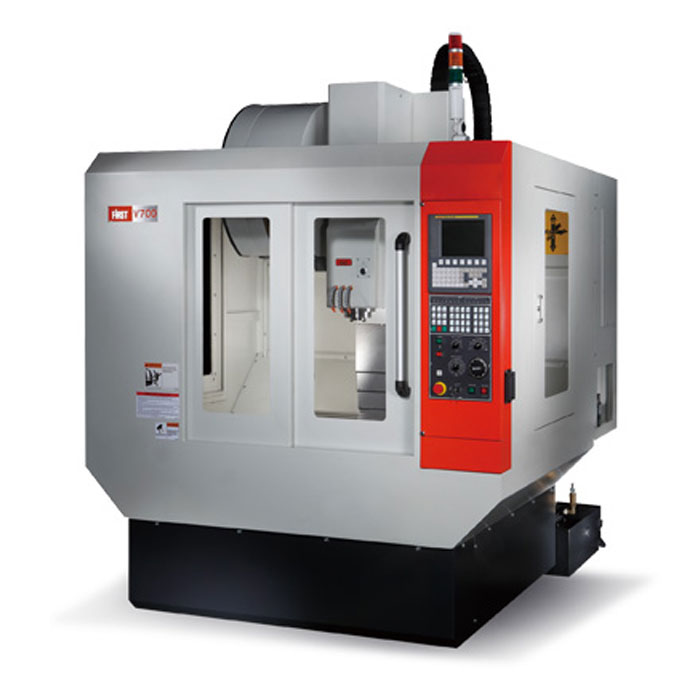

HIGH SPEED MACHINING CANTER

V700

3-axes high rigidity & precision roller guide ways.
Direct driven spindle makes excellent finishing surface with low noise and low vibration.
Rapid traverse speed X.Y.Z 48 m/min. (FANUC Z 32m/min)
High accuracy.
Full enclosed splashguard for elegant outlook.
Wide door open design, easy access to working-piece.

OUTSTANDING STRUCTURE

MEEHANITE cast iron for all major machine parts.
Box type headstock construction provides outstanding cutting capability.
Heavy duty roller guide ways with wide spacing.
Direct driven on 3-axes ball screw.
Working surface 800x400mm.

SPIRAL TYPE CHIP CONVEYOR

Standard sprial type chip conveyor in the middle removes chips out easily.

TWO INDEPENDENT PUMPS ENSURE EFFICIENT COOLING ON WORK PIECE AND STRONG CHIP FLUSHING DURING MACHINING.

PRECISION HABD SCRAPING

Hand scraping and precision grinding ensure stability and caauracy.

AUTOMATIC LUBRICATION SYSTEM

Automatic central lubricator provides excellent lubrication to all guide way blocks and ball screw.

OIL SKIMMER (OP)

Steel wiper Oil skimmer can easily saparate the oil from coolant water.

Specification

SPECIFICATION

MODEL	V700
Travel
X-Axis	700 mm(27.5")
Y-Axis	400 mm(15.7")
Z-Axis	550 mm (21.6") / 650 mm (25.5") (Option)
Spindle nose to table	150~700 mm (5.9~27.5") / 150~800 mm (5.9~31.4") (Option)
Table
Table size	800 mm x 400 mm (31.5~15.7")
Floor to table	858 mm (33.77")
Max. table loading capacity	250kgs (551 Lbs)
T-slot (number x width x pitch)	3 x 18 mm x 100 mm(3x0.7" x 3.93")
Spindle center to column	500 mm (19.68")
Feed system
Rapid traverse speed	X/Y/Z: 48 / 48 / 32 M/min
Feed motor (FANUC)	X/Y : 1.8kW, Z: 3.0kW
Ball screw diameter & pitch	X: 32mm / 16mm (1.26/0.63") Y: 32mm / 16mm (1.26/0.63") Z: 32mm / 16mm (1.26/0.63")
Cutting feed rate	1~10000 mm/min
Type of transmission	Direct Drive
Spindle
Type of tool shank	BT 40 / CAT 40 / DIN 69871A
Max. spindle speed	10000 rpm / 12000 or 15000 rpm (Option)
Spindle motor	5.5 / 7.5 kW
Type of transmission	Direct Drive
ATC
Tool storage capacity	24 T
ATC type	Arm Type
Max. tool diameter	80 mm (3.14")
Without adjacent tool	150 mm (5.9")
Max. tool length	250 mm (9.84")
Max. tool weight	7 kg (14.14 Lbs)
Tool changing time (Tool to Tool)	2.0 sec
Tool changing time (Chip to Chip)	4.6 sec
Method of tool selection	Random selection
Method of tool selection	bi-directional magazine rotation
Tool display	None
Special tool management	Yes (except FANUC 0l-Mate D)
Coolant system
Coolant tank size	200 L
Coolant capacity	150 L / min
Chip Flush capacity	150 L / min
Machine size
Machine height	2770 mm (84.4")
Floor space	1900 x 2284 mm (74.8" x 89.92")
Weight	3690 kgs (81.33 Lbs)
Power source
Electrical power supply	20 KVA / 3 PH , 220V 50/60HZ
Compressed air supply	6.0 kgf/cm² (85psi (0.6MPa)
Controller
	FANUC / HEIDENHAIN / MITSUBISHI / SIEMENS

Edition / A01
* Specifications may different according to option accessories and are subject to change without notice.

Standard accessories
● Alarm light ● Working light ● Arn type ATC 24 Tools ● Automatic lubrication system ● Spindle chiller ● Spiral type chip conveyor ● 10,000 rpm spindle (Direct drive) ● Spindle coolant system ● Fixed handwheel

Optional accessories
● Auto door ● 4th or 4+5th axis rotary table ● Coolant through spindle system ● Door lock ● Spindle air blow ● Coolant gun ● Air gun ● Mist collection system ● Oil skimmer ● Air through spindle ● Flat type chip conveyor ● Power transformer ● Z axis travel 650mm ● Riser block 200mm
