Specification

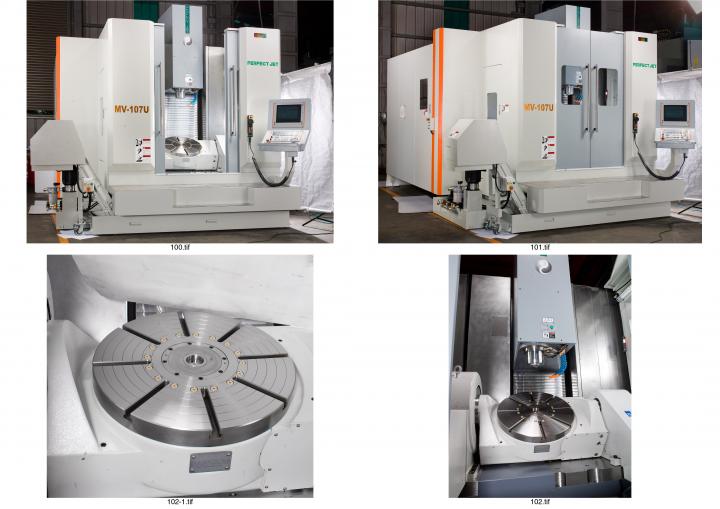

| Item | unit | MV-64U/86U/107U |
| Travel | X-axis mm | 400/500/700 |
| Y-axis mm | 400/600/700 | |
| Z-axis mm | 550/500/540 | |
| A-axis Deg. | -20°~110°/ +110° / -10°~100° | |
| C-axis Deg. | 360°/360°/360° | |
| Nose to table mm | 120~670/120~620/160~700 | |
| Spindle | Speed range rpm | 10,000(opt.12,000/15,000) |
| Spindle taper | BT-40 | |
| Spindle drive | Direct-coupled | |
| Spindle motor Kw | 5.5/7.5-7.5/11-11/15 | |
| ATC | Magazine capacity | 24/24/24(opt.30/40) |
| ATC typer | Arm type | |
| Tool change time Sec | Sec | 2/2/2.5(T to T) |
| Table | Table size mm | Φ320/Φ400/Φ630 |
| Max. Work piece size | Φ300xH200/Φ400xH300/Φ600xH400 | |
| Max. Horizonal load (Kg) | 180/200/500 | |
| Max. Vertical load (Kg) | 110/150/300 | |
| Feed | X/Y/Z Rapid feed | 36/36/30-36/36/30-30/30/24 M/min |
| A/C Feed (Min-1) | A=50/C=25 / A=16.7/C=11.1 / A=16.7/C=11.1 | |
| X/Y/Z B/S Diameter (mm) | 40/40/50 | |
| X/Y/Z Motor Kw | 3/3/4-4/4/7-7/7/14 | |
| Guide type | Linear ways | |
| Tool | Tool Shank | BT.40 |
| Max. tool length mm | 300 | |
| Max. tool diameter mm | 80 | |
| Max. tool weight Kg | 7 | |
| Power suppply (KVA) | 25/35/45 | |
| Power Sources | Pneumatic unit (Kg/cm) | 5.5~6.5 |
| Coolant tank (L) | 270/400/450(225x2) | |
| Machine weight | Net weight (Kg) | 7,000/11,000/15,000 |
| Machine size | LxWxH (mm) | 2435x4850x2950/5800x5100x3200/4480x5610x3700 |
| ● Designed for complex 3D curved surface machining , such as turbofan and impellers etc. | ||
| ● Applicable for various industries including aerospace , ship building , automotive , mold and optical. | ||
| ● Heavy duty roller type linear ways permit heavy cutting. | ||
| ● Rotary table is directly mounted on base for increasing machining stability and supporting wider range to loading / unloading of workpiece. | ||
