Travelling Column Vertical Machine
MV-206／306／406／606

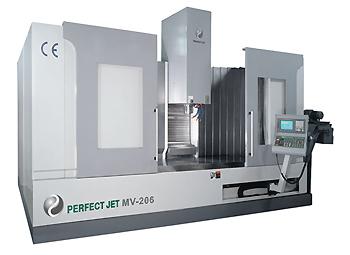

MV-206/306/406/606
●Full column moving g design, excellence in machining process.
●High speed, Excellent precision machine for aluminum and compound materials.
●Spindle speed is 10,000~15,000rpm
●Fixed table suits long & heavy work piece. Excellent swarf protection and efficient chip disposal ensure aluminum & steel cutting.
Vertical machining center, a moving column designed machining center, can offer high efficiency while functioning.
VERTICAL MV-206/306/406/606
The Best Way for Productivity and Profits.
Specification
| Item | MV-206/306/406/606 | |
| Travel | X-axis mm | 2000/3000/4000/6000 |
| Y-axis mm | 600 | |
| Z-axis mm | 550 | |
| Nose to table mm | 100~600 | |
| Spindle | Speed range rpm | 10,000 |
| Spindle taper | BT-40 | |
| Spindle drive | Direct-coupled | |
| Spindle motor Kw | 7.5/11 | |
| ATC | Magazine capacity | 24(0pt.30/40) |
| ATC typer | Arm type | |
| Tool change time Sec | - | 2.5(T to T) |
| Table | Table size mm | 2500x600/3500x600/4500x600/6500x600 |
| T-slot(WidthxNo.xpitch) | 18x5x100 | |
| Max. load(Kg) | 1000x1500x2000x2500 | |
| Feed | X/Y/Z Rapid feed | 30/30/15 M/min |
| X/Y/Z Motor Kw | 7/7/8 | |
| Guide typer | M55 Linear | |
| Tool | Tool Shank | BT.40 |
| Max. tool length mm | 300 | |
| Max. tool diameter mm | 80/127 | |
| Max. tool weight Kg | 7 | |
| Power suppply KVA | 45 | |
| Power Sources | Pneumatic unit Kg/cm | 5.5~6.5 |
| Coolant tank L | 450(225x2) | |
| Machine weight | Net weight(Ton) | 14/18/22/30 |
| Machine size | LxWxH mm | 6.2/7.2/8.2/10.2x3.4x3.1 |
| ● Fixed and long table design allows for long and heavy workpiece machining. | ||
| ● Heavy load type M55 liner ways on all axes assure maximum rigidity. | ||
| ● Also ideal for aluminum and compound material machining. | ||
| ● Rapid traverse 30 M/min. | ||
| ● Cutting federate 20 M/min. | ||
| ● Directly coupled spindle. | ||
| ● Fully enclosed splash guard. | ||
| ● Spindle oil cooler. | ||
| ● 4th / 5th rotary table is optional | ||
