M Series

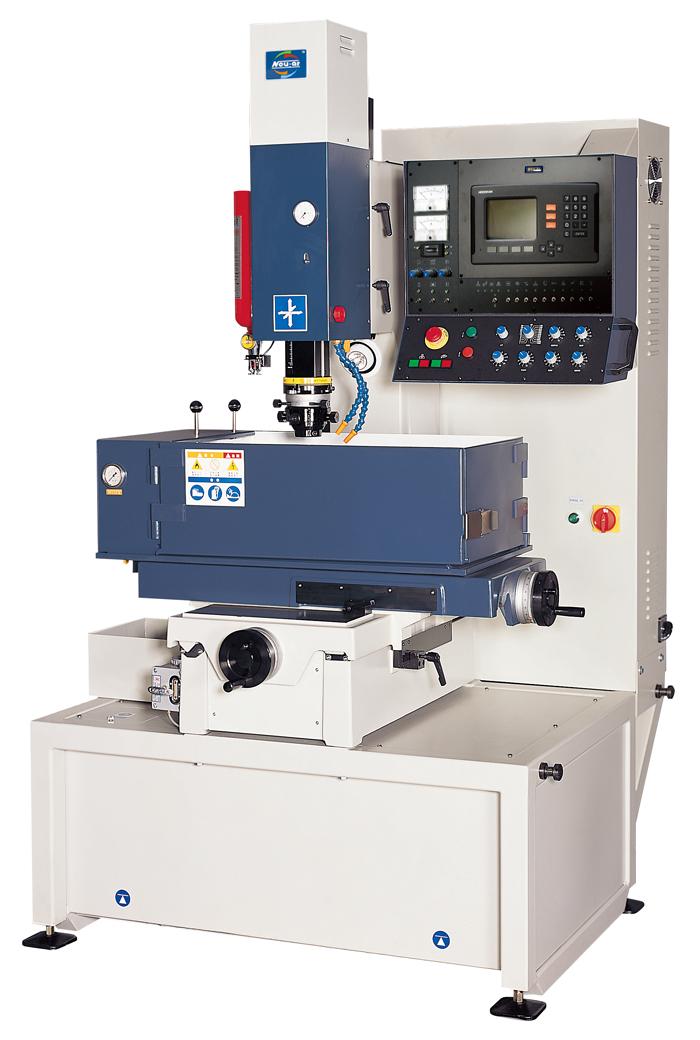

M-30
M-30
- Heidenhain EDM controller.
- Figure displays 4 digits after decimal point.
- 9 sets coordinate memory.
- Built-in origin and mold center setting function.
- The lowest machining depth display function.
- Electrode consumption offset function.
- Built- in residue proofing to drive out carbon residue.
- Equipped with high precision Heidenhain 1μm linear encoder.
- Durable wear-resistant Teflon Slippery track in “V shape” and “horizontal track”.
- High precision ball screw for delicate transmission.
- Double erect type filtration system separates carbon residue more efficiently.
- Multiple fire- proof detection system.
Specification
| SPECIFICATIONS | M - 30 |
| Work Tank Dimensions |
885 x 435 x 270 mm
|
| Work Table Dimensions |
470 x 280 mm
|
| XYZ Axis Travel |
250 x 200 x 200 mm
|
| Distance from Main Axis to Table |
405 mm
|
| Auxiliary Travel of Z Axis |
170 mm
|
| Max. Workpiece Weight |
300 kg
|
| Max. Electrode Weight |
30 kg
|
| Max. Capacity of Dielectric |
200 liters
|
| Max. Machining Speed |
230 mm3 / min
|
| Min. Wear Rate |
< 0.1 %
|
| Best Surface Finish |
< Ra 0.18 μm
|
| Max. Output Current |
30 A
|
| Input Power |
2.4 kVA
|
| Machine Dimensions L x W x H |
130 x 125 x 212 cm
|
| Total Weight of Machine |
1,095 kg
|
