M Series

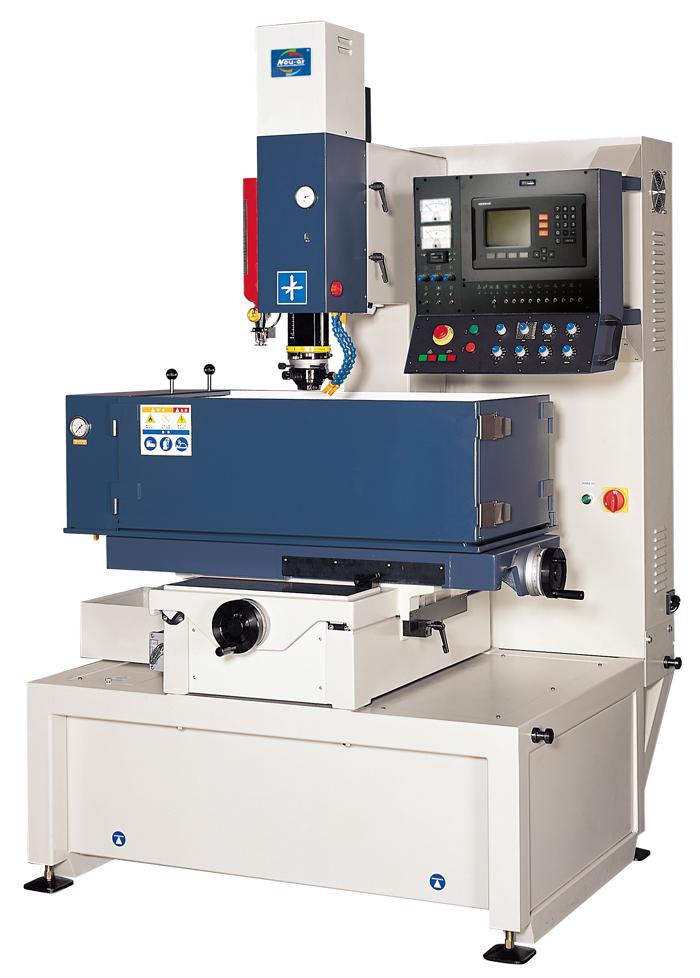

M-50
M-50
- Heidenhain EDM controller.
- Figure displays 4 digits after decimal point.
- 9 sets coordinate memory.
- Built-in origin and mold center setting function.
- The lowest machining depth display function.
- Electrode consumption offset function.
- Built- in residue proofing to drive out carbon residue.
- Equipped with high precision Heidenhain 1μm linear encoder.
- Durable wear-resistant Teflon Slippery track in “V shape” and “horizontal track”.
- High precision ball screw for delicate transmission.
- Double erect type filtration system separates carbon residue more efficiently.
- Multiple fire- proof detection system.
Specification
| SPECIFICATIONS | M - 50 |
| Work Tank Dimensions |
940 x 530 x 350 mm
|
| Work Table Dimensions |
630 x 360 mm
|
| XYZ Axis Travel |
350 x 250 x 200 mm
|
| Distance from Main Axis to Table |
520 mm
|
| Auxiliary Travel of Z Axis |
200 mm
|
| Max. Workpiece Weight |
500 kg
|
| Max. Electrode Weight |
50 kg
|
| Max. Capacity of Dielectric |
300 liters
|
| Max. Machining Speed |
420 mm3 / min
|
| Min. Wear Rate |
< 0.1 %
|
| Best Surface Finish |
< Ra 0.18 μm
|
| Max. Output Current |
50 A
|
| Input Power |
3.3 kVA
|
| Machine Dimensions L x W x H |
140 x 138 x 220 cm
|
| Total Weight of Machine |
1,350 kg
|
