Pneumatic Flash Butt Welding Machine

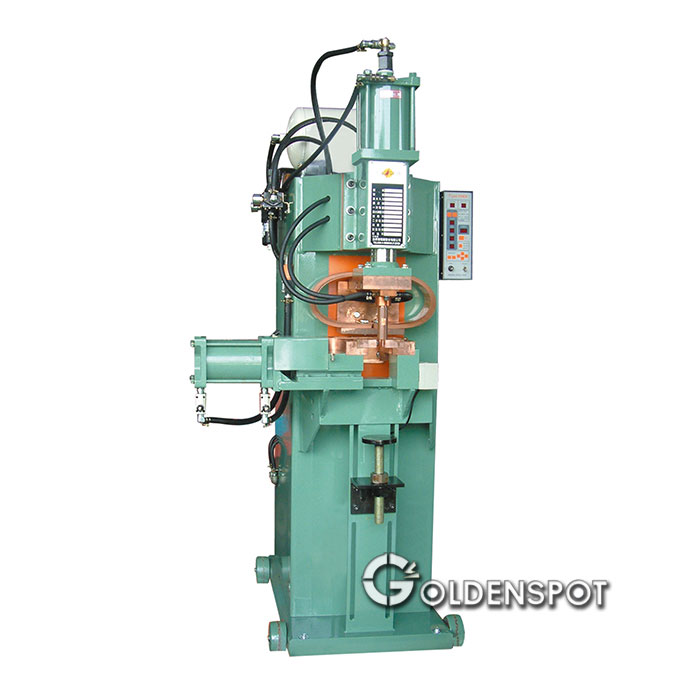

Pneumatic T-Type Butt Welding Machine
SBT-1200
Features

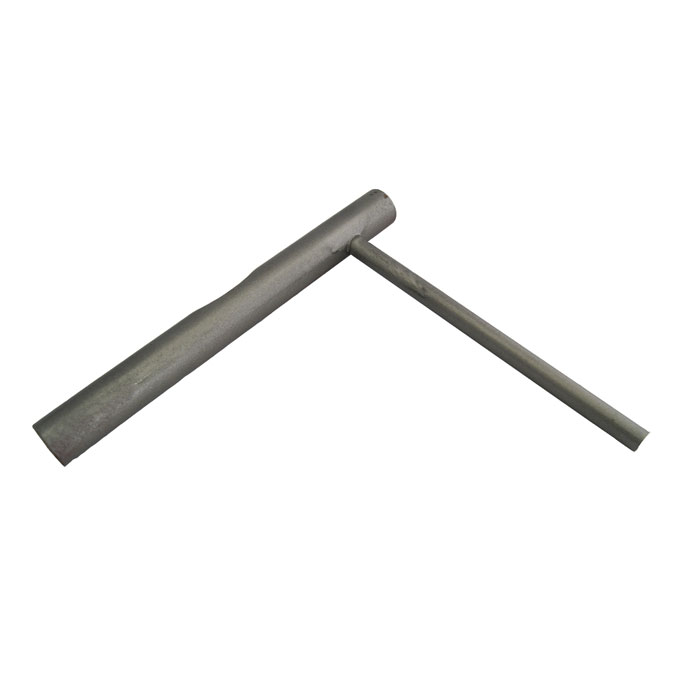

1.Suits for T, H and U shaped Wire & Tube, weld.
2.Direct apply trimmed edge without other process.
3.Fast & handy operate to regular operator.
Applications

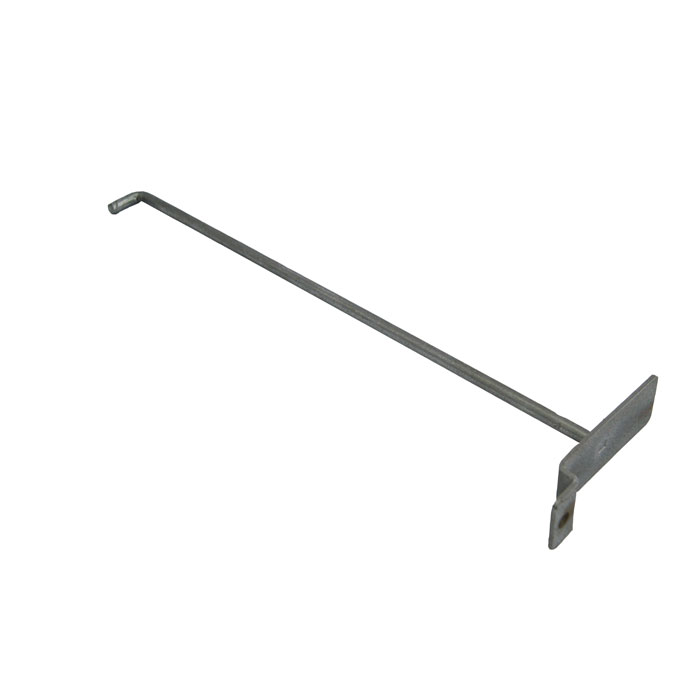

Display Rack, Foldable Chair, Handrail, Baby Cart, Metal Furniture...etc.
Specification
Specification Table:
| Model | Rated Capacity | Voltage | Rated Frequency | Permissible Duty | Max. Short Circuit Currents |
Weld Wire |
Weld Pipe |
|---|---|---|---|---|---|---|---|
| NO. | KVA | V | HZ | % | A | mm | mm |
| SBT-600 | 60 | 220/380 | 50/60 | 8 | 24,000 | Ø6 X 6 |
- |
| SBT-800 | 80 | 220/380 | 50/60 | 8 | 28,000 | Ø7 X 7 |
Ø12 X 0.8~1.2 |
| SBT-1000 | 100 | 220/380 | 50/60 | 8 | 34,000 | Ø8 X 8 |
Ø16 X 0.8~1.2 |
| SBT-1200 | 120 | 220/380 | 50/60 | 8 | 38,000 | Ø10 X 10 |
Ø20 X 1.2~2.0 |
| SBT-1500 | 150 | 220/380 | 50/60 | 8 | 40,000 | Ø12 X 12 |
Ø25 X 1.2~2.0 |
